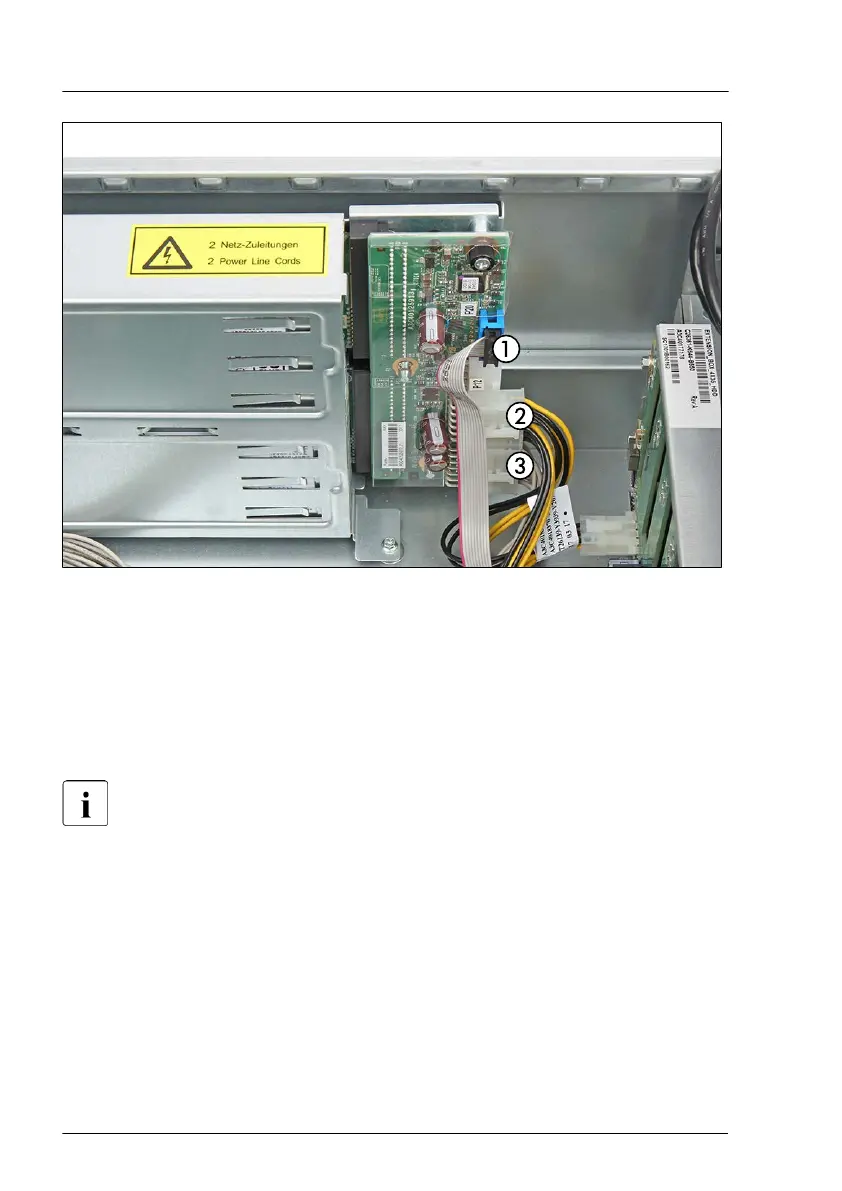

Figure 78: Connecting the power distribution board
▶
Connect the cables to the power distribution board:
1 PSU signal cable to connector "P20"
2 Power cable (from backplanes) to connector "P22"
3 PSU power cable (from system board) to connector "P21"
For the cable plans, see "Appendix B" on page 519.
▶
Install the PSUs, see
"Installing a hot-plug PSU" on page 145.
Concluding steps
▶
Install the system fan module, see "Installing the system fan module" on
page 85.
▶
"Reassembling" on page
66.
▶
"Connecting the power cord" on page 79.
▶
"Switching on the server" on page 81.
Power supply unit (PSU)
158 Upgrade and Maintenance Manual TX1330 M4
