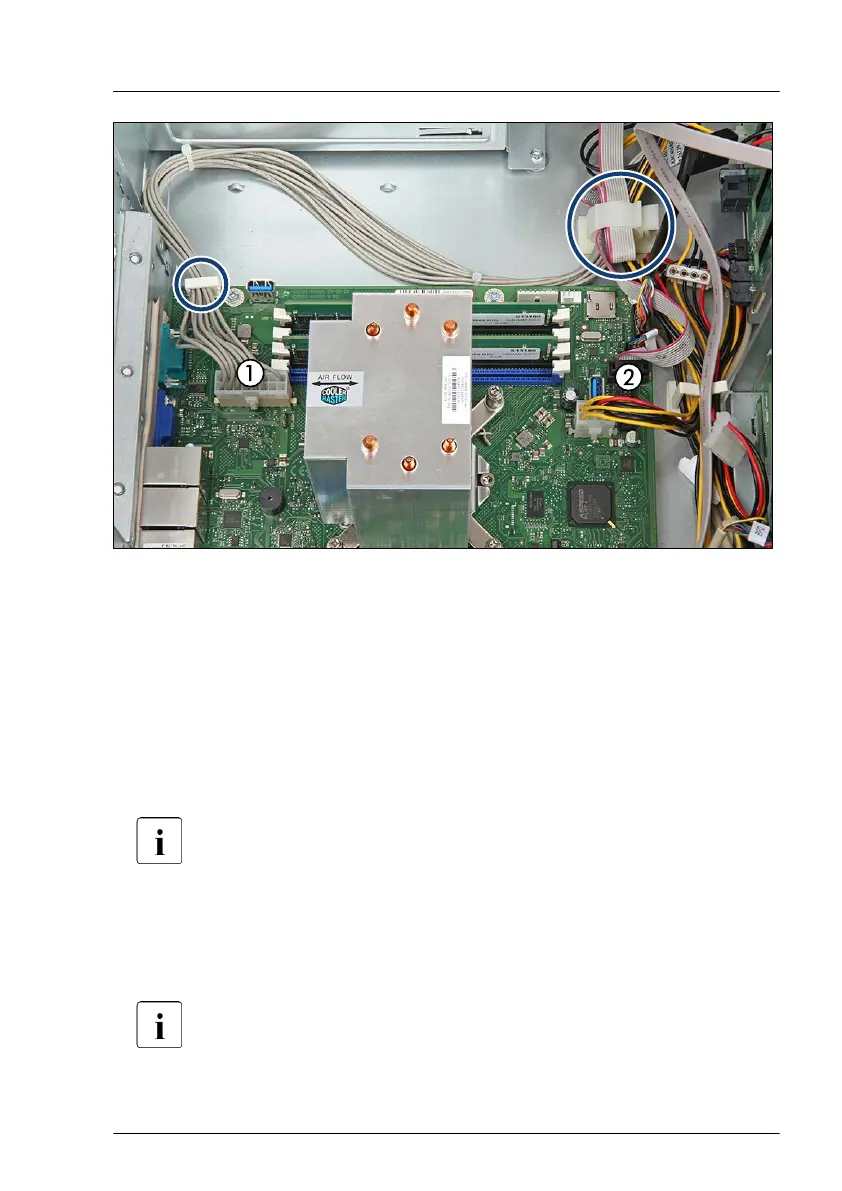

Figure 83: Connecting cables to the system board
▶
Connect the cables to the system board:
1 PSU power cable to connector "PWR MAIN"
3 PSU signal cable to connector "P30"
▶
Run the cables through the corresponding cable clamps (see circles).
▶
Connect the power cables to the corresponding accessible drives /
backplanes.
For the cable plan, see "Appendix B" on page
519
Installing hot-plug PSU and dummy cover
▶
Install the hot-plug PSU, see
"Installing a hot-plug PSU" on page 145
The PSU must be installed in the first bay. The dummy cover must be
installed in the second bay.
▶
Install the dummy cover, see
"Installing the dummy cover" on page
152
Power supply unit (PSU)
TX1330 M4 Upgrade and Maintenance Manual 167
