Connecting cables

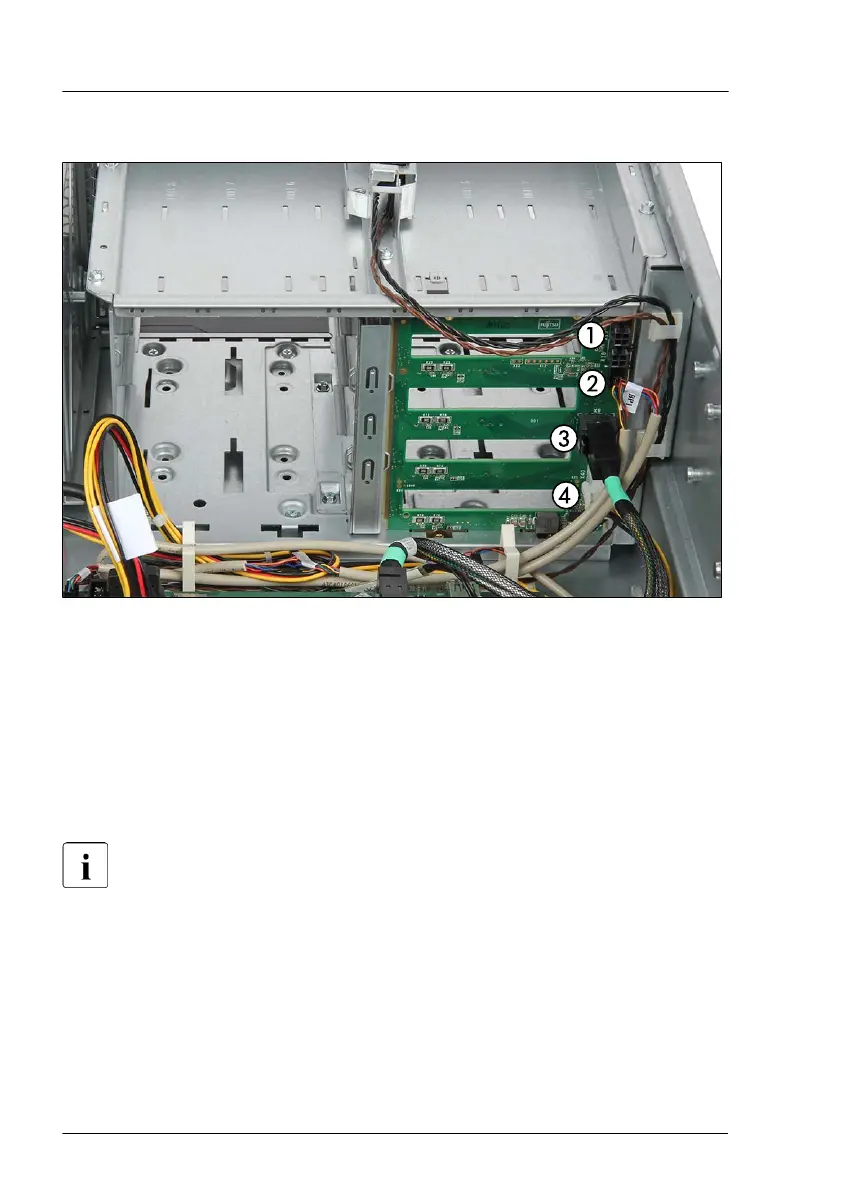

Figure 114: Connecting cables to the SAS backplane (example 4x 3.5-inch HDDs)
▶
Connect the cables to the backplane:
1 If applicable, riser card power cable
2 If applicable, OOB cable
3 SAS cable
4 Power cable
For the cable plan, see "Appendix B" on page 519.
Concluding steps
Hard disk drive (HDD) / solid state disk (SSD)
