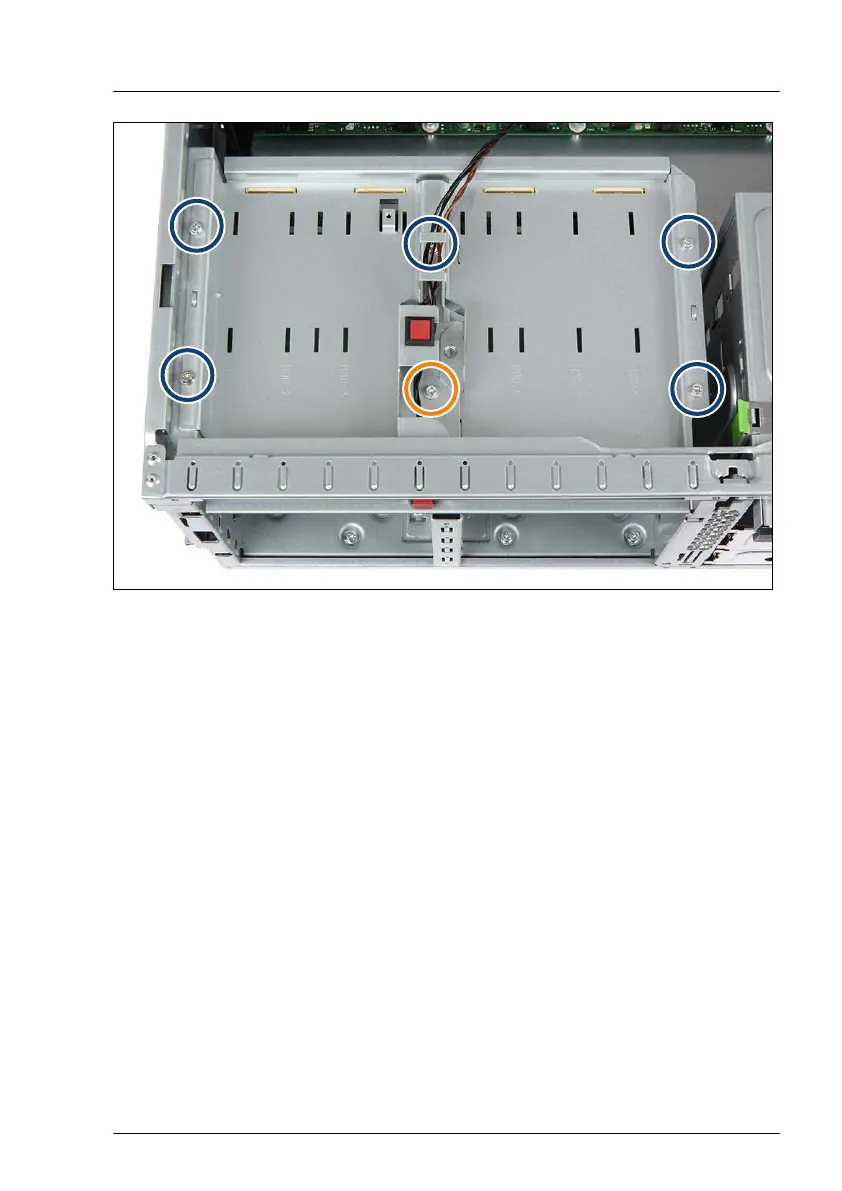

Figure 113: Installing the 3.5-inch HDD bay top cover (C)
▶
Fasten the HDD bay top cover to the chassis with five screws (see blue
circles).
▶
Fasten the intrusion switch holder on the HDD bay top cover with one screw
(see orange circle).
