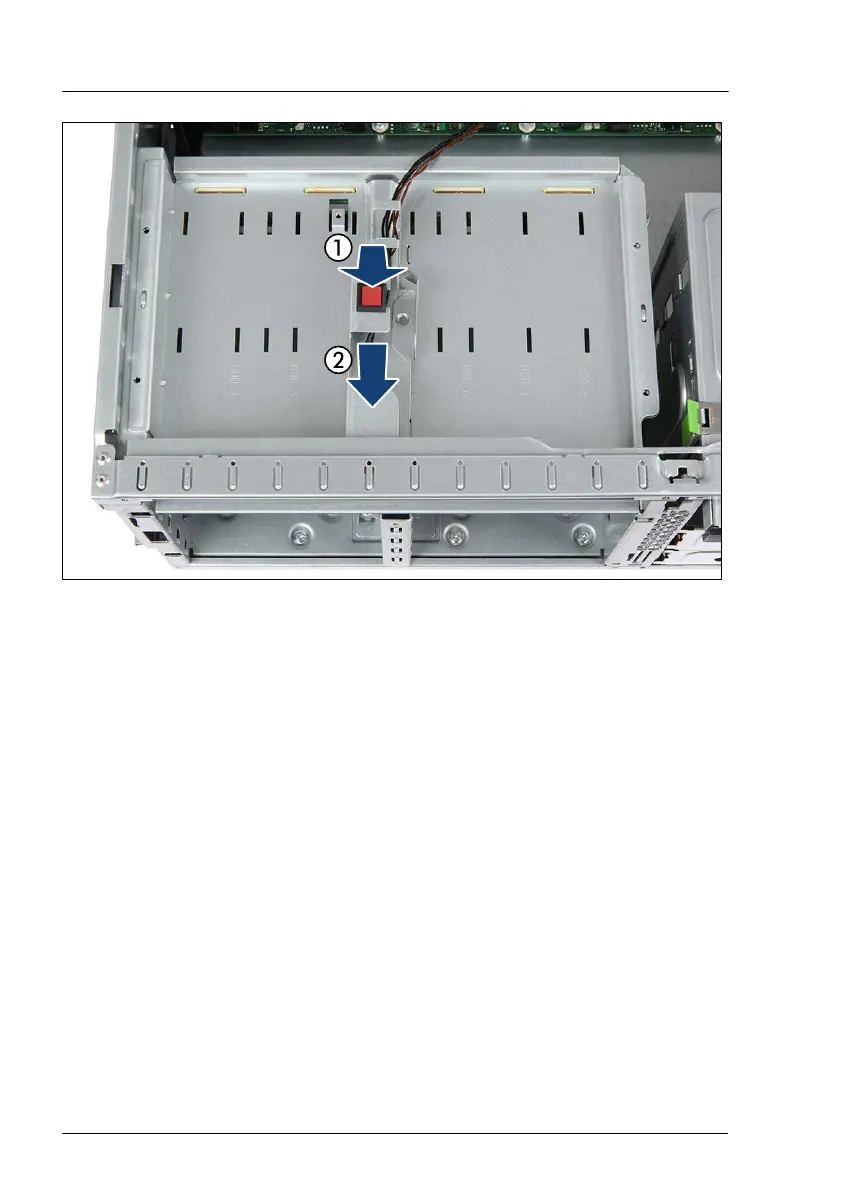

Figure 112: Installing the 3.5-inch HDD bay top cover (B)
▶
Place the intrusion switch holder on the HDD bay top cover as shown (1).
▶
Push the intrusion switch holder under the front chassis rim so that the hole
of screws can match with (2).
