Installing the 3.5-inch HDD bay top cover

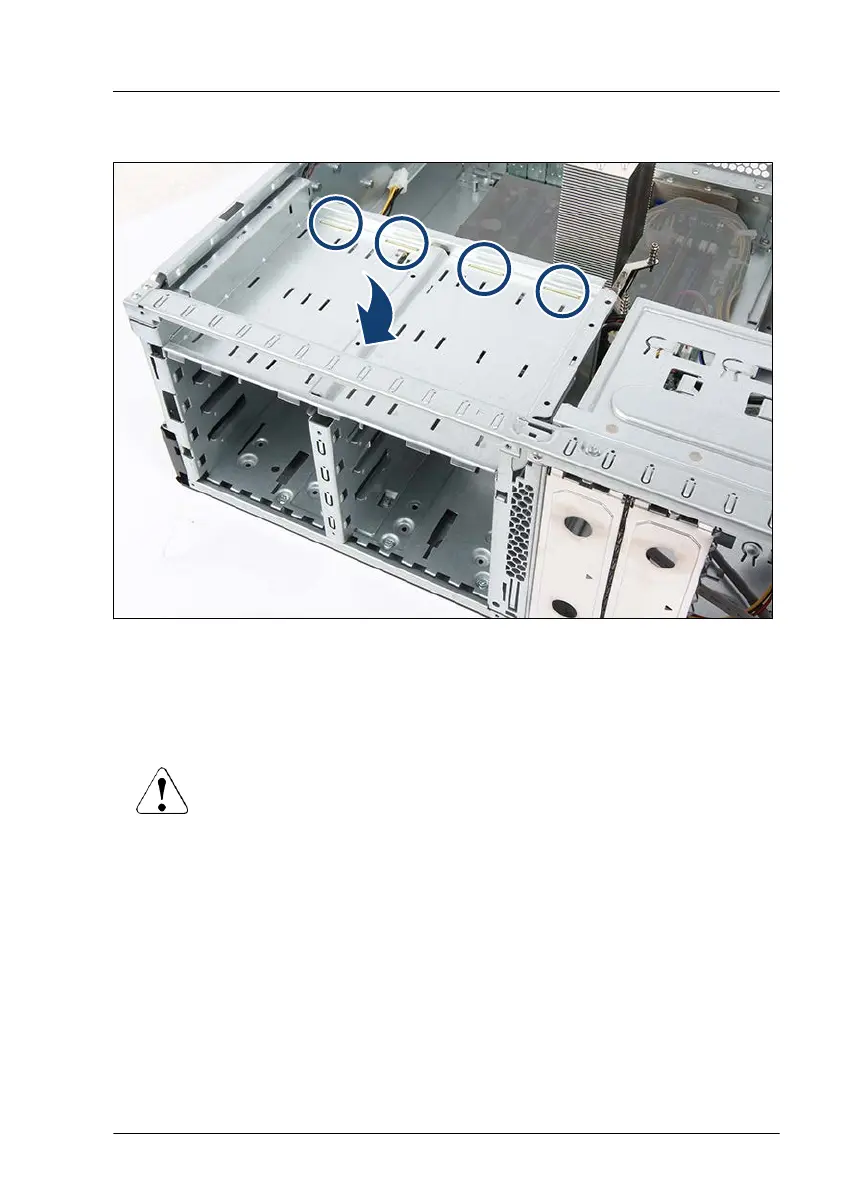

Figure 111: Installing the 3.5-inch HDD bay top cover (A)
▶
Lower the 3.5-inch HDD bay top cover onto the HDD bays.
▶
Place the 3.5-inch HDD bay top cover on the latches of the 4x 3.5-inch HDD
backplane (see circles).
CAUTION
▶
Ensure that the latches of the 4x 3.5-inch HDD SAS backplane
are properly seated in the openings in the HDD bay top cover.
Hard disk drive (HDD) / solid state disk (SSD)
TX1330 M4 Upgrade and Maintenance Manual 199
