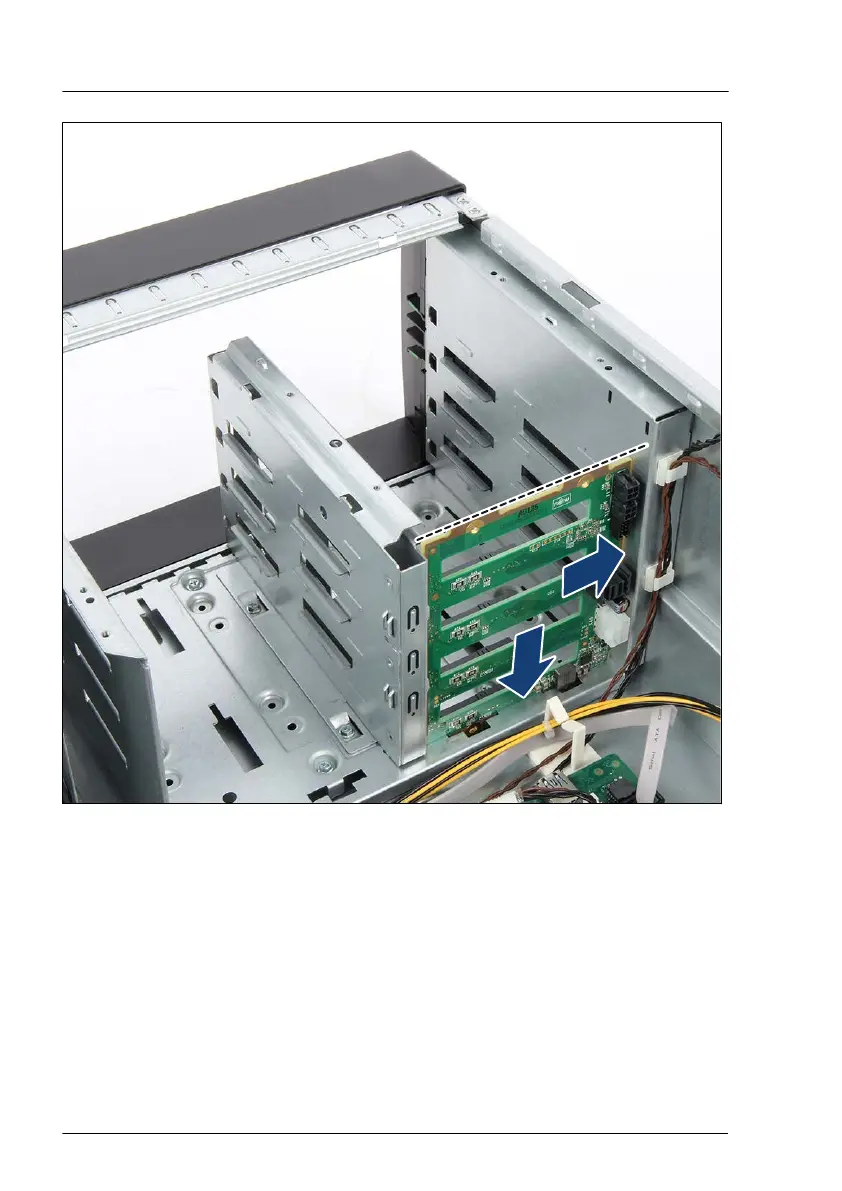

Figure 110: Installing the new 4x 3.5-inch HDD SAS backplane (B)
▶
Ensure that the 4x 3.5-inch HDD SAS backplane is properly seated into the
bottom rim and side guide (see arrows).
▶
Ensure that the upper edge of the SAS backplane is flush with the HDD bay
divider wall (see dashed line).
Hard disk drive (HDD) / solid state disk (SSD)
198 Upgrade and Maintenance Manual TX1330 M4
