Fujitsu PRIMERGY TX1330 M4

▶
"Getting access to the component" on page 50
.
▶
Remove all HDD/SSD modules, see "Removing 2.5-inch HDD/SSD
modules" on page 216.
▶
Remove the 3.5-inch HDD bay top cover, see "Removing the 3.5-inch HDD
bay top cover" on page 193.
Removing the 3.5-inch HDD bay top cover
▶
Remove the 3.5-inch HDD bay top cover, see "Removing the 3.5-inch HDD
bay top cover" on page 193.
Removing the 4x 3.5-inch HDD front panel

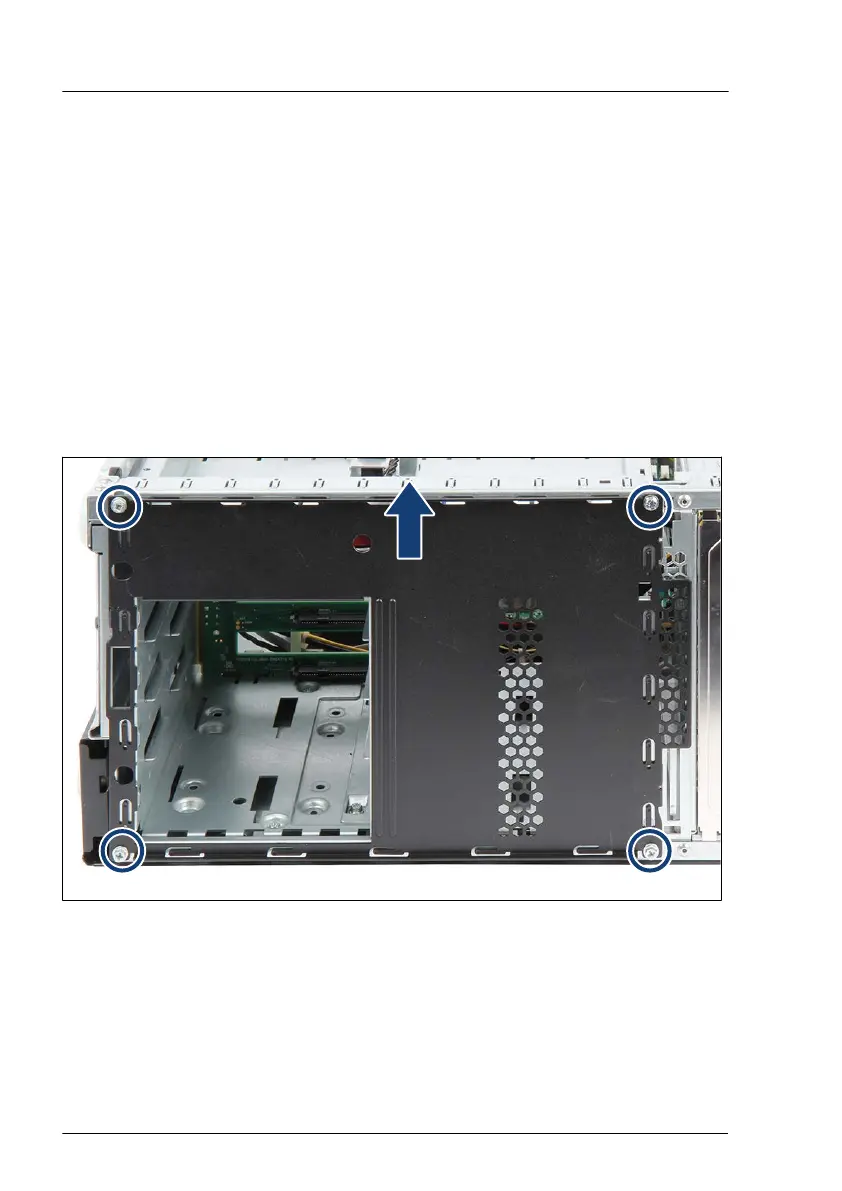

Figure 115: Removing the 4x 3.5-inch HDD front panel
▶
Remove four screws from the 4x 3.5-inch HDD front panel (see circles).
▶
Pull up the 4x 3.5-inch HDD front panel to disengage it from the chassis
(see arrow).
▶
Remove the 4x 3.5-inch HDD front panel.
Hard disk drive (HDD) / solid state disk (SSD)
204 Upgrade and Maintenance Manual TX1330 M4
