Fujitsu PRIMERGY TX1330 M4 Upgrade And Maintenance Manual

▶
Release all HDD modules and pull them out a few centimeters, see
"Removing a 3.5-inch HDD module" on page 189.
CAUTION
The HDD modules need not to be removed.
▶
If you want to remove them nevertheless, check if all HDD
modules are uniquely identified so that you can reinsert them
into their original bays.
▶
Release all dummy modules and pull them out a few centimeters, see
"Removing a 3.5-inch HDD dummy module" on page
186.
▶
Disconnect all cables from the defective SAS backplane.
Removing the 3.5-inch HDD bay top cover
The 3.5-inch HDD front cover does not need to be removed in order to
replace a 3.5-inch HDD backplane. In the figures, the front cover has
been removed for illustration purposes only
.

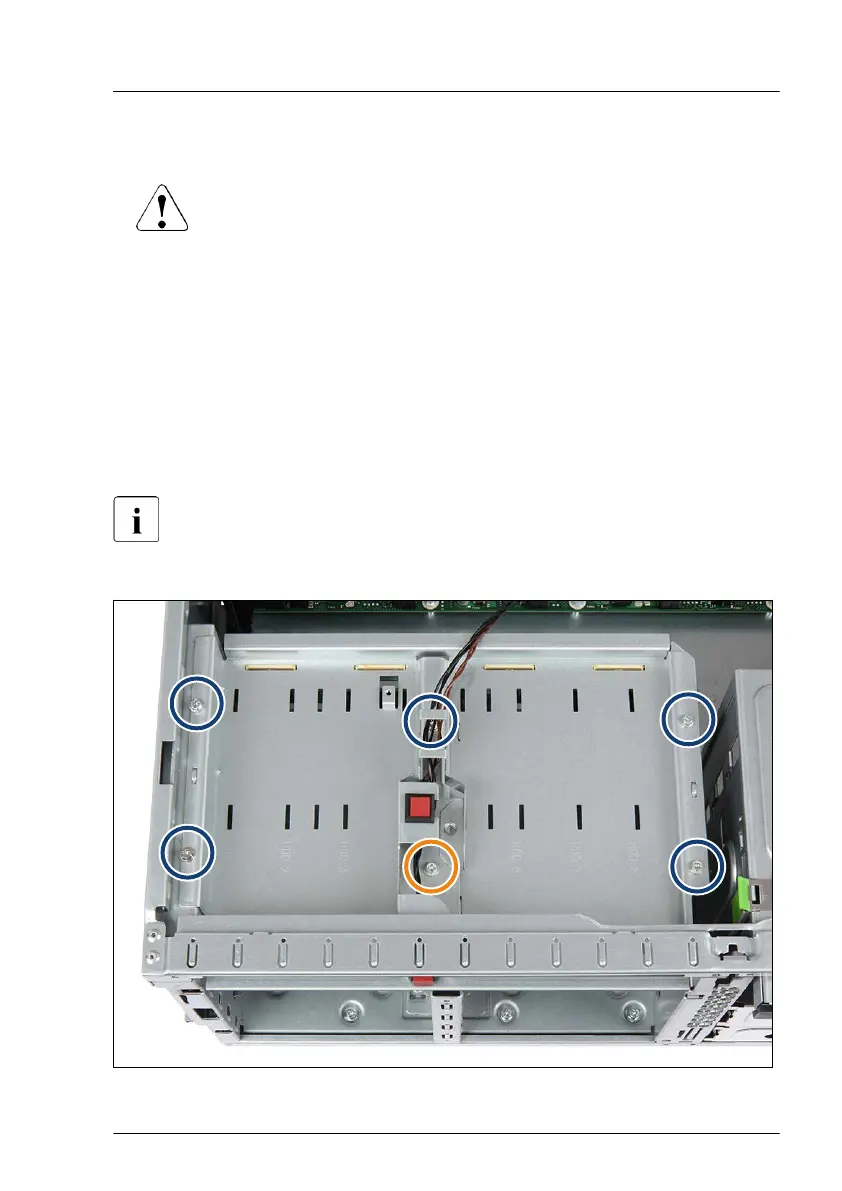

Figure 105: Removing the 3.5-inch HDD bay top cover (A)
Hard disk drive (HDD) / solid state disk (SSD)
TX1330 M4 Upgrade and Maintenance Manual 193

Fujitsu PRIMERGY TX1330 M4 Specifications

General

Chassis type	Tower
Product color	Black
HDD size	2.5 \
RAID support	Yes
HDD interface	Serial ATA III, Serial Attached SCSI (SAS)
Optical drive type	DVD±RW
Total storage capacity	0 GB
Maximum storage capacity	- TB
Number of HDDs installed	0
Number of HDDs supported	8
Bus type	DMI3
Tjunction	100 °C
Scalability	1S
Processor cache	12 MB
Processor cores	6
Processor model	E-2136
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor threads	12
Processor codename	Coffee Lake
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor boost frequency	4.5 GHz
Processor operating modes	64-bit
Embedded options available	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Design Power (TDP)	80 W
Number of processors installed	1
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR4-SDRAM
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s
Maximum internal memory supported by processor	128 GB
Compatible operating systems	Microsoft Hyper-V Server 2012 R2 Microsoft Hyper-V Server 2016 Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server 2016 Datacenter Microsoft Windows Server 2012 R2 Standard Microsoft Windows Server 2016 Standard Microsoft Windows Server 2012 R2 Essentials Microsoft Windows Server 2016 Essentials Microsoft Windows Server 2012 R2 Foundation Microsoft Windows Storage Server 2012 R2 Standard Microsoft Windows Storage Server 2016 Standard Microsoft Hyper-V Server 2012 Microsoft Windows Server 2012 Datacenter Microsoft Windows Server 2012 Standard Microsoft Windows Server 2012 Essentials Microsoft Windows Server 2012 Foundation
Memory slots	4
Internal memory	16 GB
Maximum internal memory	64 GB
LAN controller	Intel i210
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Power supply	450 W
Power supply input frequency	50 - 60 Hz
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85 %
Certification	CB, RoHS, WEEE, GS, CE, CSA us, ULc/us, FCC Class A, VCCI:V3 Class A + JIS 61000-3-2, GOST-R, KC, CCC, C-Tick, BSMI
PCI Express slots version	3.0
On-board graphics card model	Not available
Processor ARK ID	134857
Intel Secure Key Technology version	1.00

Weight and Dimensions

Depth	560 mm
Width	177 mm
Height	455 mm
