Fujitsu PRIMERGY TX1330 M4

▶
Remove five screws from the 3.5-inch HDD bay top cover (see blue circles).
▶
Remove one screw from the intrusion switch holder (see orange circle).
Figure 106: Removing the 3.5-inch HDD bay top cover (B)
▶

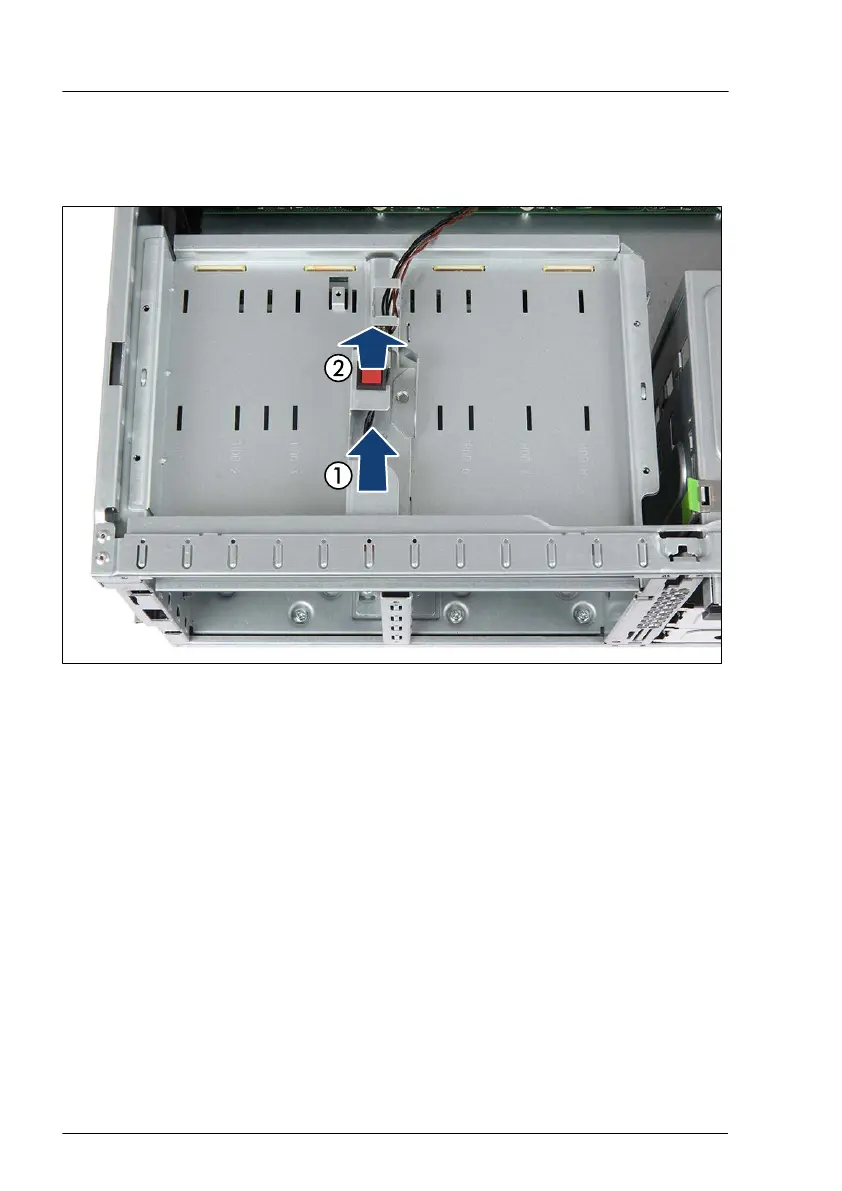

Slide back the intrusion switch holder until it disengages from the HDD bay
top cover (1).
▶
Remove the intrusion switch holder (2) and set aside.
▶
Leave the intrusion switch cable connected to the system board.
Hard disk drive (HDD) / solid state disk (SSD)
194 Upgrade and Maintenance Manual TX1330 M4
