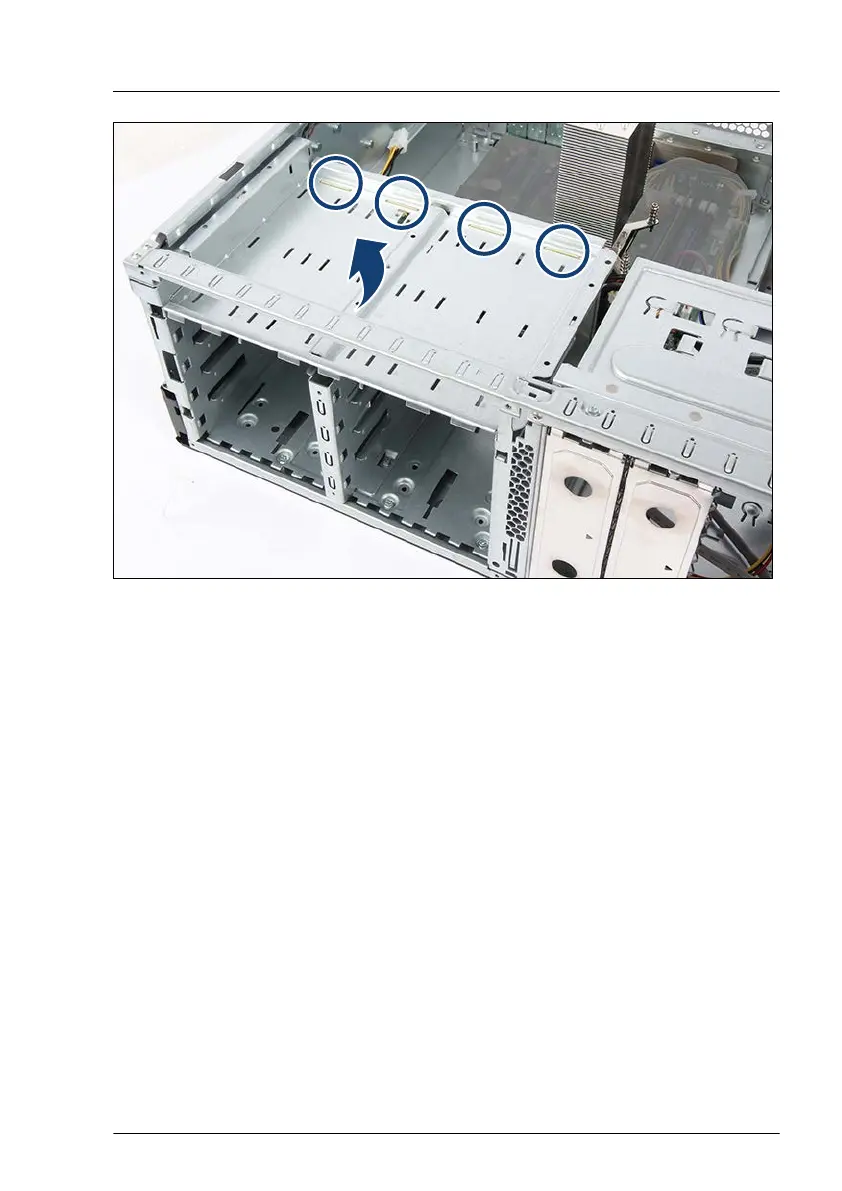

Figure 107: Removing the 3.5-inch HDD bay top cover (C)
▶
Carefully fold up the 3.5-inch HDD bay top cover to disengage it from the
HDD backplane below (see circles).
▶
Remove the 3.5-inch HDD bay top cover from the chassis.
Hard disk drive (HDD) / solid state disk (SSD)
TX1330 M4 Upgrade and Maintenance Manual 195
