Fit the SAS backplane into the guide on the outer wall of the HDD bay (see
close-up) and lower it into the bottom rim.
Please be careful not to damage the components of the SAS
backplane by the metal frame of HDD bay (see close-up).
▶
Ensure that the SAS backplane is properly seated into the bottom rim and
side guide.
▶
Ensure that the upper edge of the SAS backplane is flush with the HDD bay
divider wall (see dashed line).
Installing the 8x 3.5-inch HDD front panel

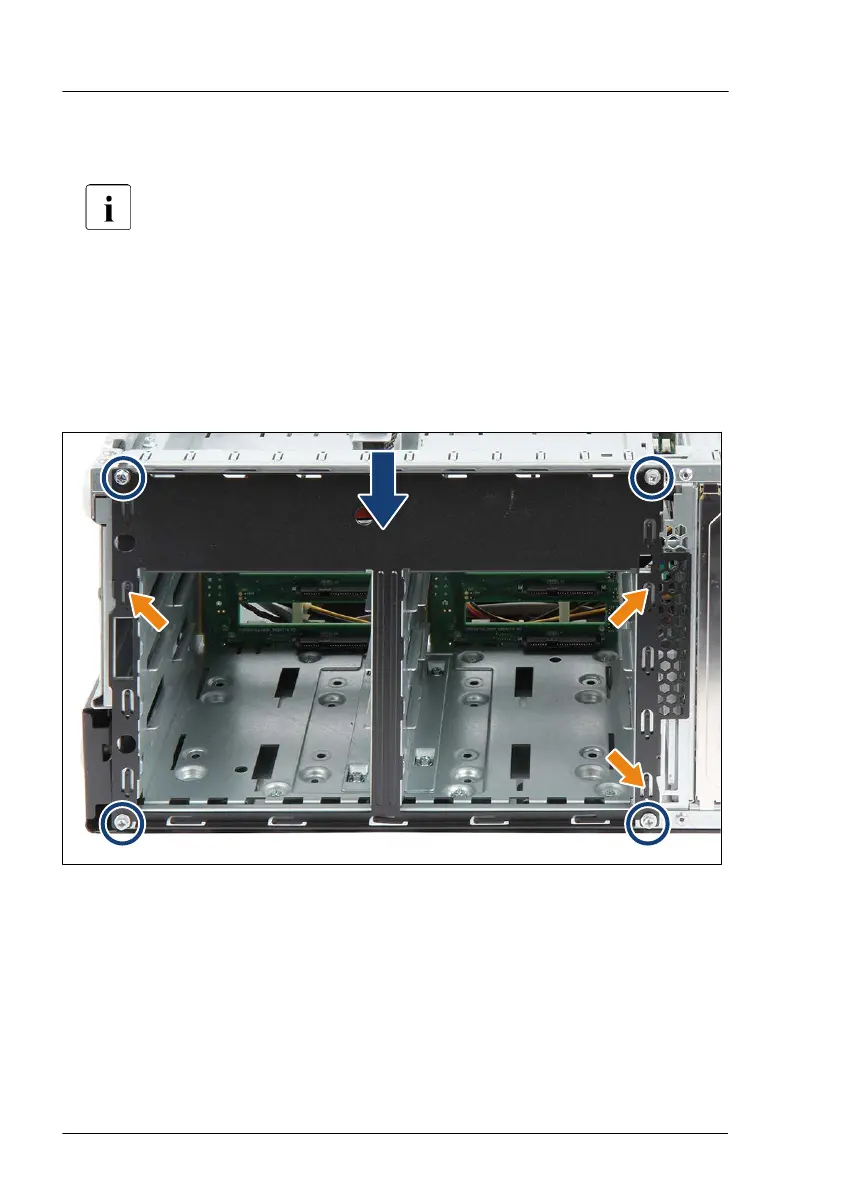

Figure 117: Securing the 8x 3.5-inch HDD front panel
▶
Fit the three hooks on the HDD front panel into the slots in the server front
(see orange arrows).
▶
Firmly press down on the HDD front panel until its upper edge is flush with
the chassis (see blue arrow).
▶
Fasten the HDD front panel to the server front with four M3 x 4.5 mm screws
(see circles).
Hard disk drive (HDD) / solid state disk (SSD)
206 Upgrade and Maintenance Manual TX1330 M4
