Installing the 3.5-inch HDD bay top cover
▶
Install the HDD bay top cover, see "Installing the 3.5-inch HDD bay top
cover (C)" on page 201
.
Connecting cables

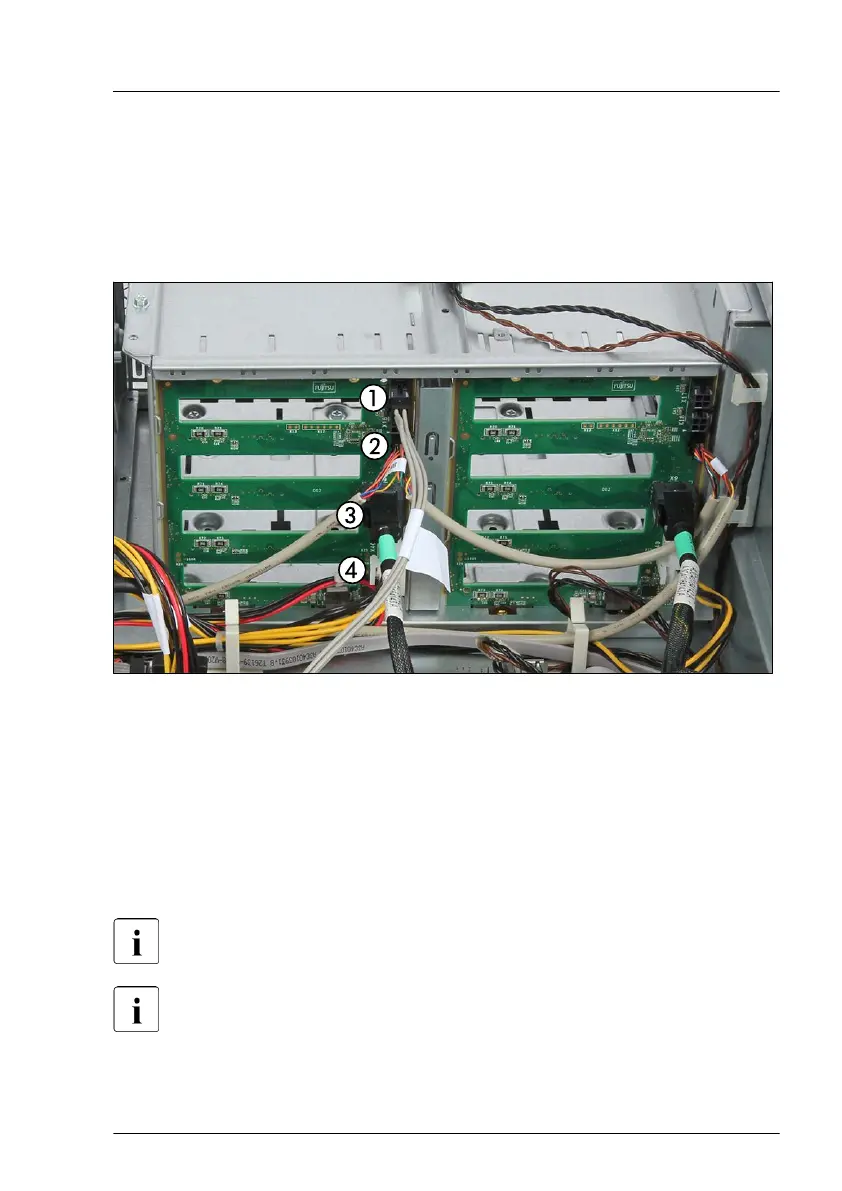

Figure 118: Connecting cables to the SAS backplane 2 (example 8x 3.5-inch HDDs)
▶
Connect the cables to the backplane:
1 If applicable, riser card power cable
2 If applicable, OOB cable
3 SAS cable
4 Power cable
For more information about connecting SAS cables to the corresponding
controller, see "Expansion cards and riser cards" on page
299.
For the cable plan, see "Appendix B" on page 519.
Hard disk drive (HDD) / solid state disk (SSD)
TX1330 M4 Upgrade and Maintenance Manual 207
