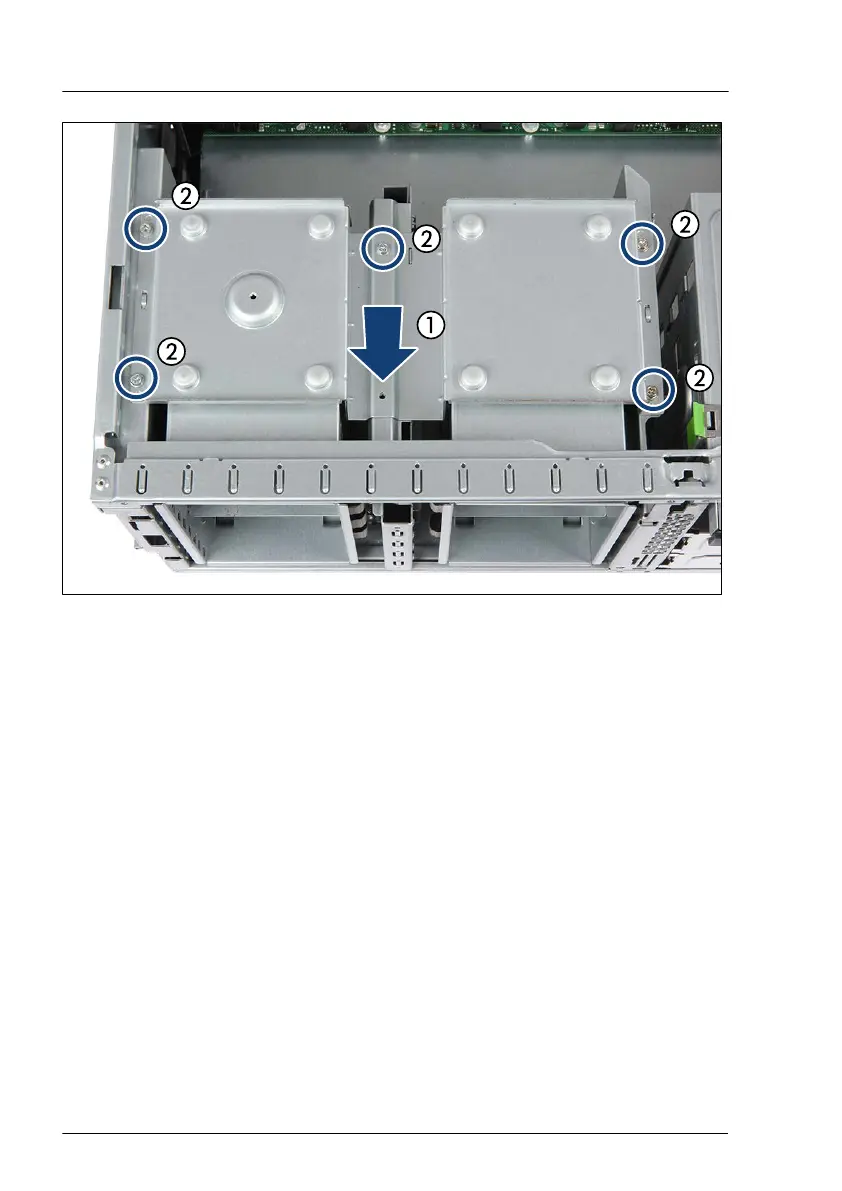

Figure 136: Installing the 2.5-inch HDD/SSD bay top cover
▶
Lower the 2.5-inch HDD/SSD bay top cover onto the HDD installation bays
(1).
▶
Ensure that the four rubber bolts on top of the cage properly engage with the
corresponding dents in the HDD bay top cover.
▶
Fasten the HDD bay top cover to the chassis with five screws (2).
