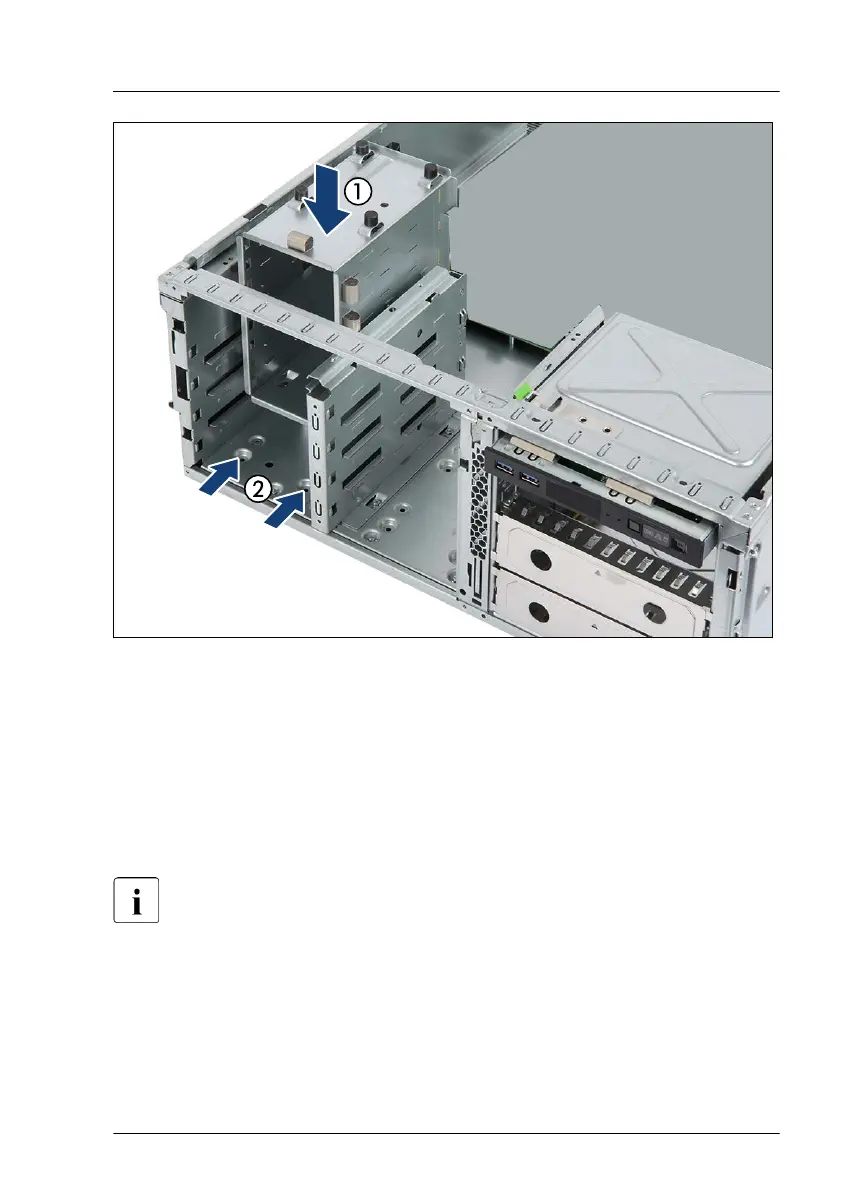

Figure 135: Installing the 2.5-inch HDD/SSD cage
▶
Lower the 2.5-inch HDD/SSD cage into the HDD installation bay as shown
(1).
▶
Ensure that the four rubber bolts on the bottom of the cage properly engage
with the corresponding dents in the chassis floor (2).
Installing the 2.5-inch HDD/SSD bay top cover
The 2.5-inch HDD/SSD front cover does not need to be removed in
order to replace a 2.5-inch HDD/SSD SAS backplane. In the figures, the
front cover has been removed for illustration purposes only.
Hard disk drive (HDD) / solid state disk (SSD)
TX1330 M4 Upgrade and Maintenance Manual 231
