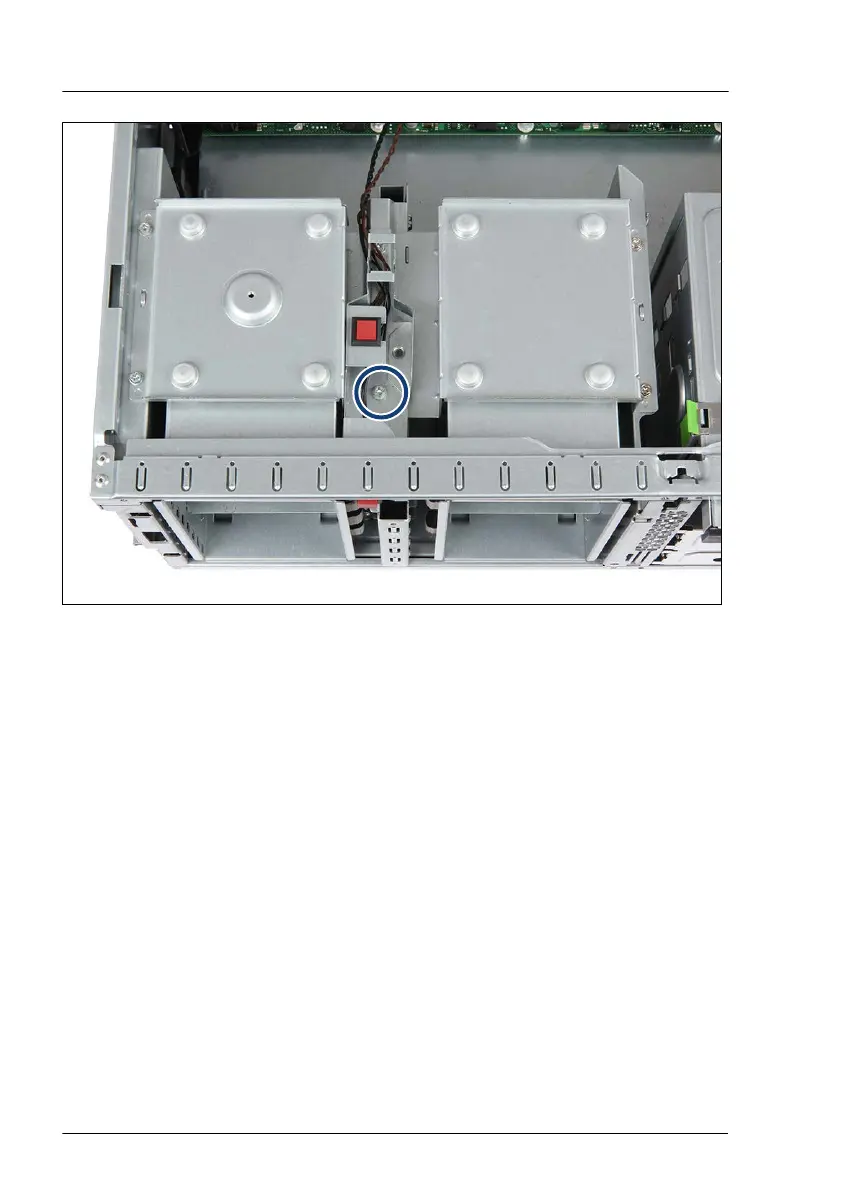

Figure 138: Installing the intrusion switch holder (B)
▶
Fasten the intrusion switch holder on the HDD bay top cover with one screw.
Connecting cables to the 2.5-inch HDD backplane
Example 8x 2.5-inch HDD/SSD configuration (backplane 1)
Hard disk drive (HDD) / solid state disk (SSD)
