Connecting cables

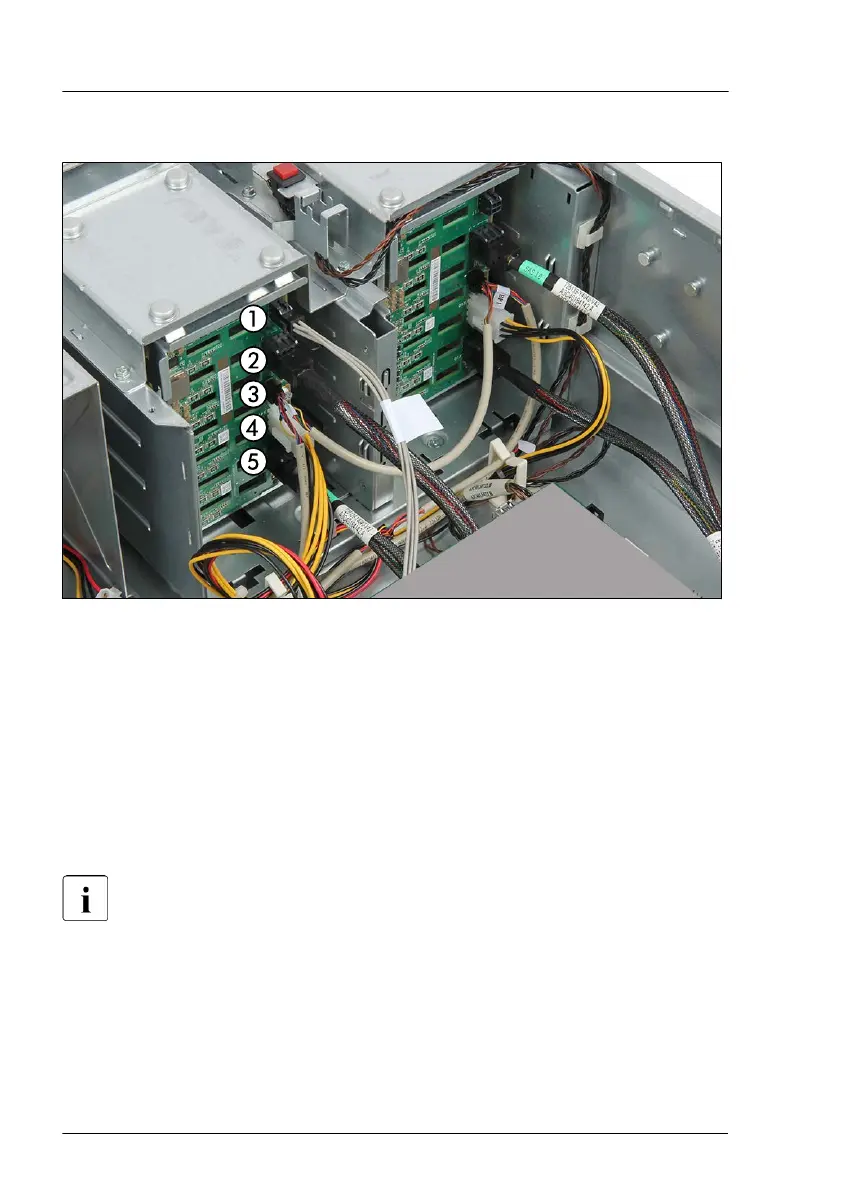

Figure 142: Connecting cables to the backplane (example 16x 2.5-inch HDD/SSD)
▶
Connect the cables to the backplane:
1 SAS expander board power cable
2 SAS cable to backplane connector "X10"
3 If applicable, OOB cable
4 Power cable
5 SAS cable to backplane connector "X9"
For the cable plan, see "Appendix B" on page 519.
Installing the expander board
▶
Install the expander board, see "Installing the SAS expander board" on
page 268.
Hard disk drive (HDD) / solid state disk (SSD)
240 Upgrade and Maintenance Manual TX1330 M4
