Installing the 16x 2.5-inch HDD/SSD front panel

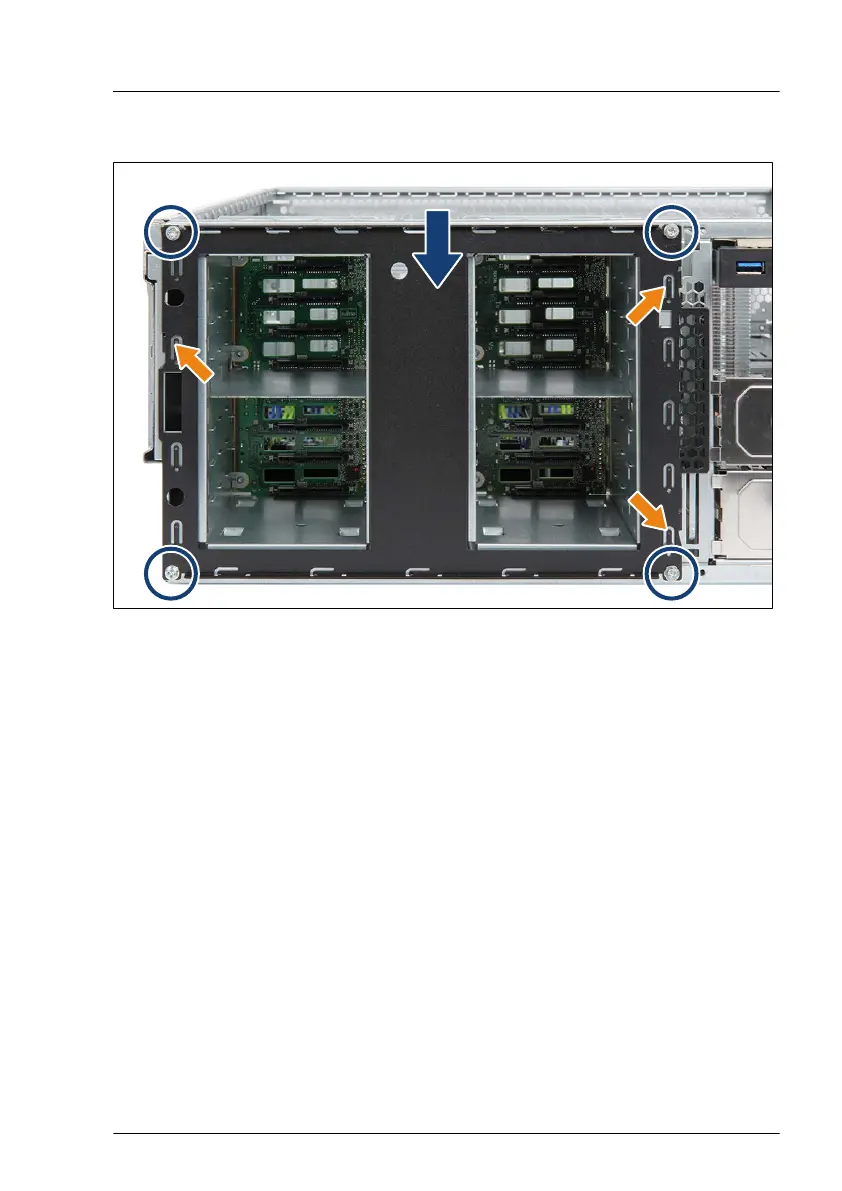

Figure 141: Securing the 16x 2.5-inch HDD/SSD front panel
▶
Fit the three hooks on the 2.5-inch HDD/SSD front panel into the slots in the
server front (see orange arrows).
▶
Firmly press down on the HDD front panel until its upper edge is flush with
the chassis (see blue arrow).
▶
Fasten the HDD front panel to the server front with four screws (see circles).
