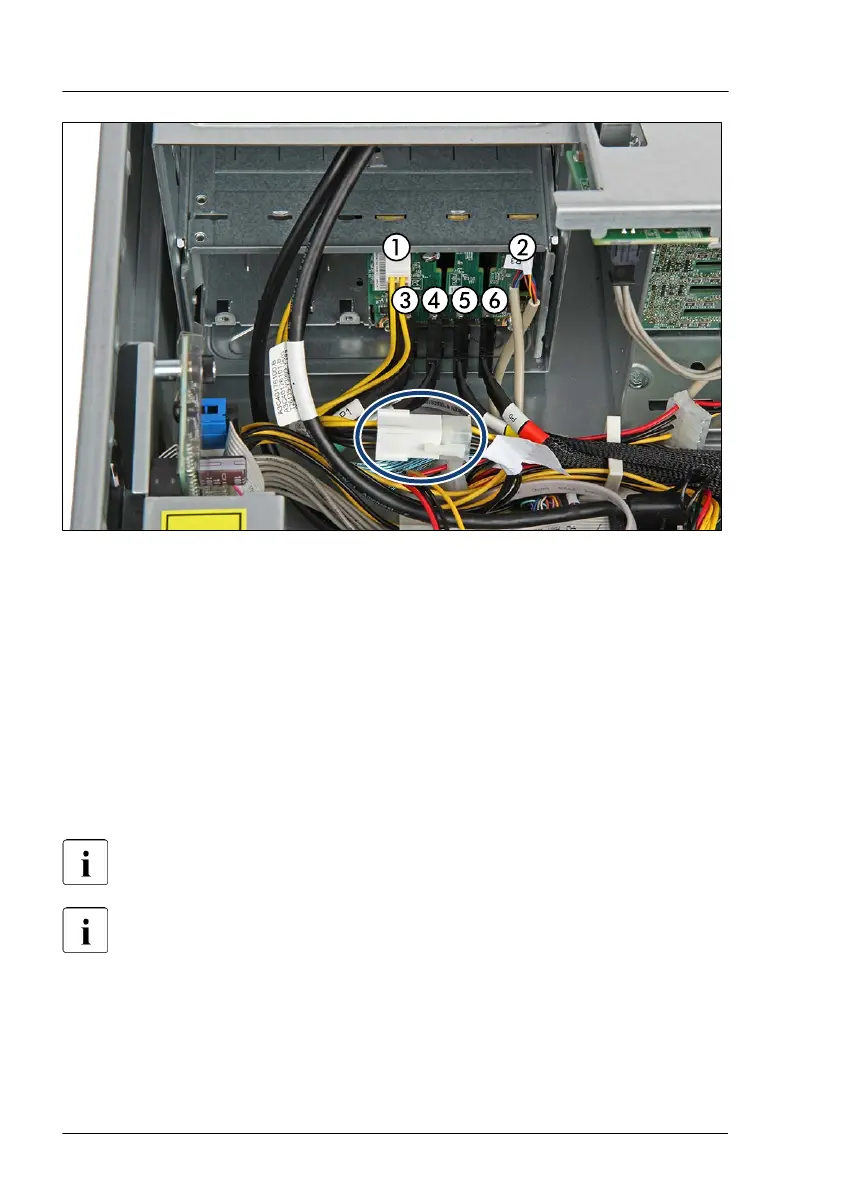

Figure 146: Connecting the PCIe cables to the backplane
▶
Connect the cables to the backplane:
1 Power cable
2 If applicable, OOB cable
3 Oculink cable (black) to backplane connector "P3-X4"
4 Oculink cable (green) to backplane connector "P2-X3"
5 Oculink cable (yellow) to backplane connector "P1-X2"
6 Oculink cable (red) to backplane connector "P0-X1"
For more information about connecting SAS cables to the PRAID
EP5x0i, see "Installing an expansion card" on page 299.
For the cable plan, see "Appendix B" on page 519.
