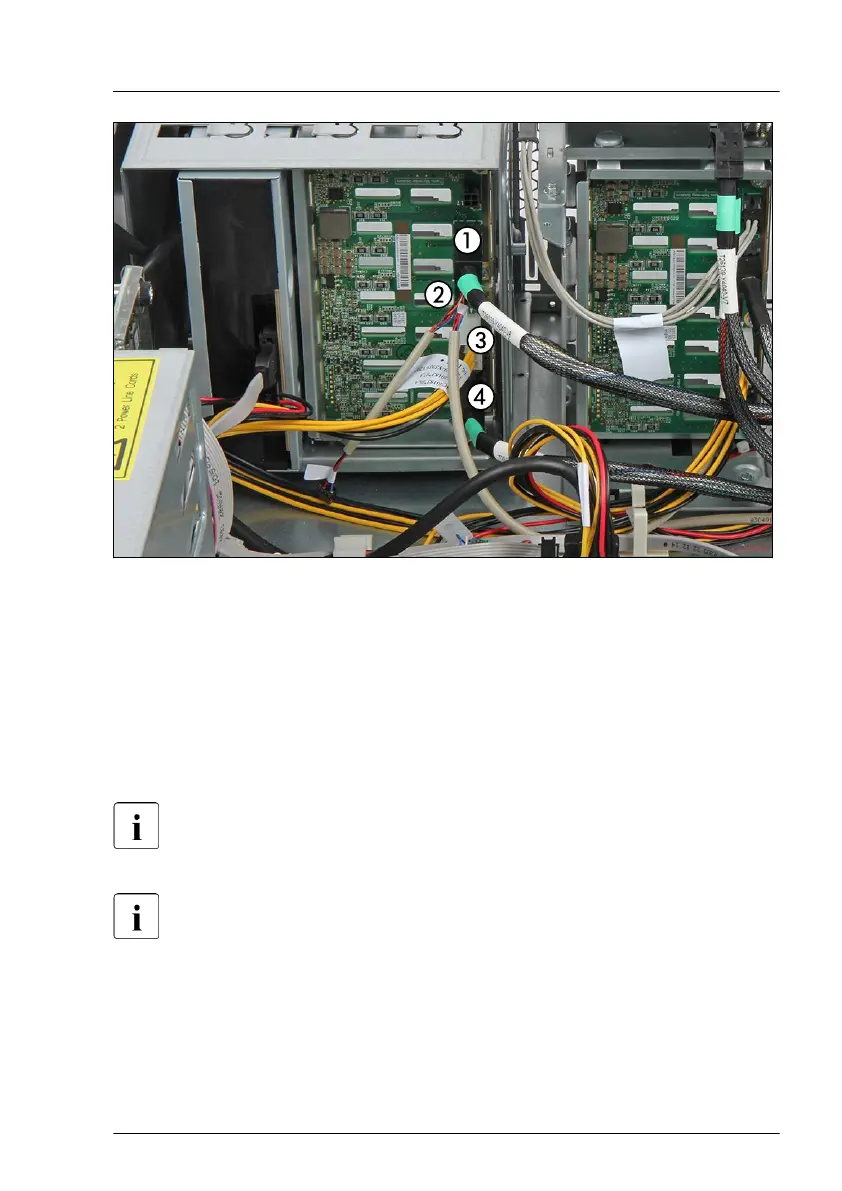

Figure 145: Connecting the 8x 2.5-inch HDD/SSD extension box
▶
Connect the cables to the backplane:
1 SAS cable to backplane connector "X9"
2 Power cable
3 If applicable, OOB cable
4 SAS cable to backplane connector "X10"
For more information about connecting SAS cables to the SAS
expander board, see "Connecting cables to the SAS expander board"
on page 269.
For the cable plan, see "Appendix B" on page 519.
Example with 4x 2.5-inch PCIe SSD backplane
Hard disk drive (HDD) / solid state disk (SSD)
TX1330 M4 Upgrade and Maintenance Manual 245
