Fujitsu PRIMERGY TX1330 M4

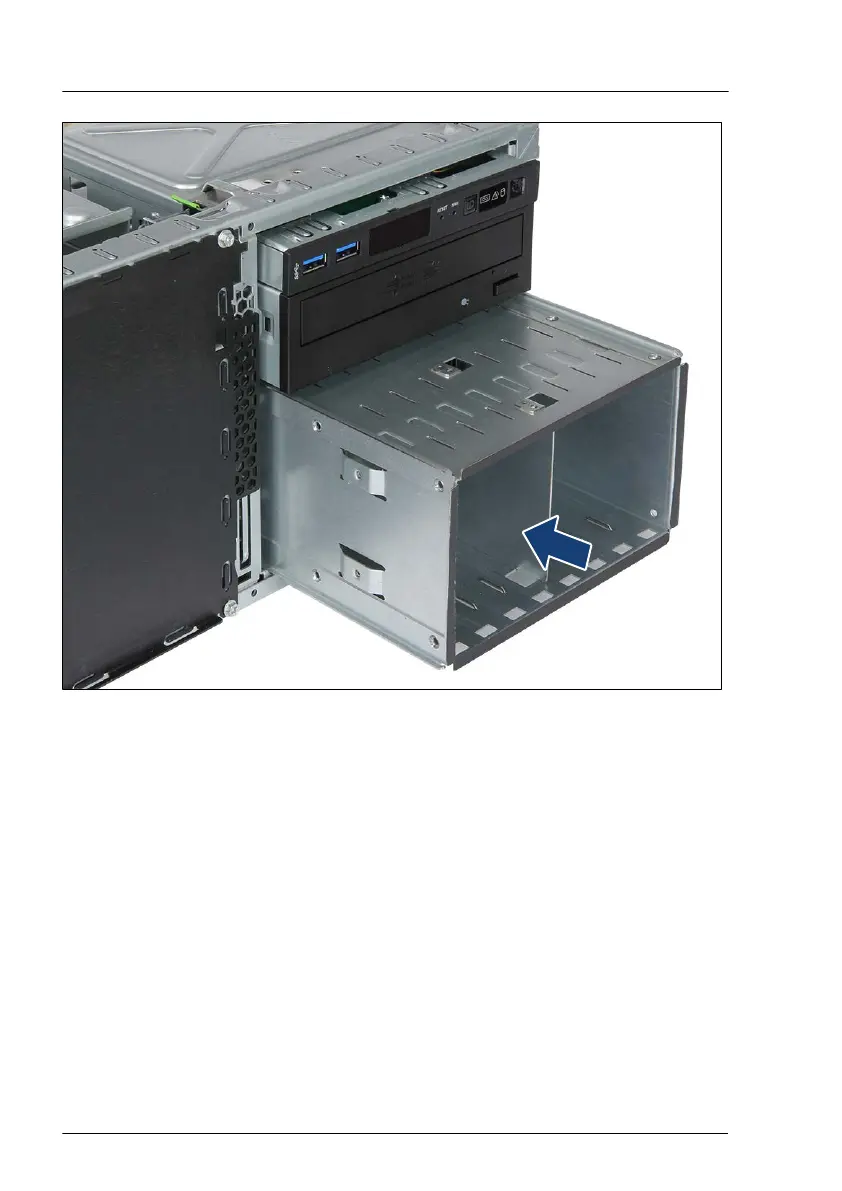

Figure 144: Inserting the 8x 2.5-inch HDD/SSD extension box
▶
Insert the 8x 2.5-inch HDD/SSD extension box into installation bays 2 and 3
and carefully push in until it lines up with the front panel.
▶
Closing the locking bar, see "Closing the accessible drive locking bar" on
page 91.
Connecting cables
Example with 8x 2.5-inch HDD/SSD backplane
Hard disk drive (HDD) / solid state disk (SSD)
