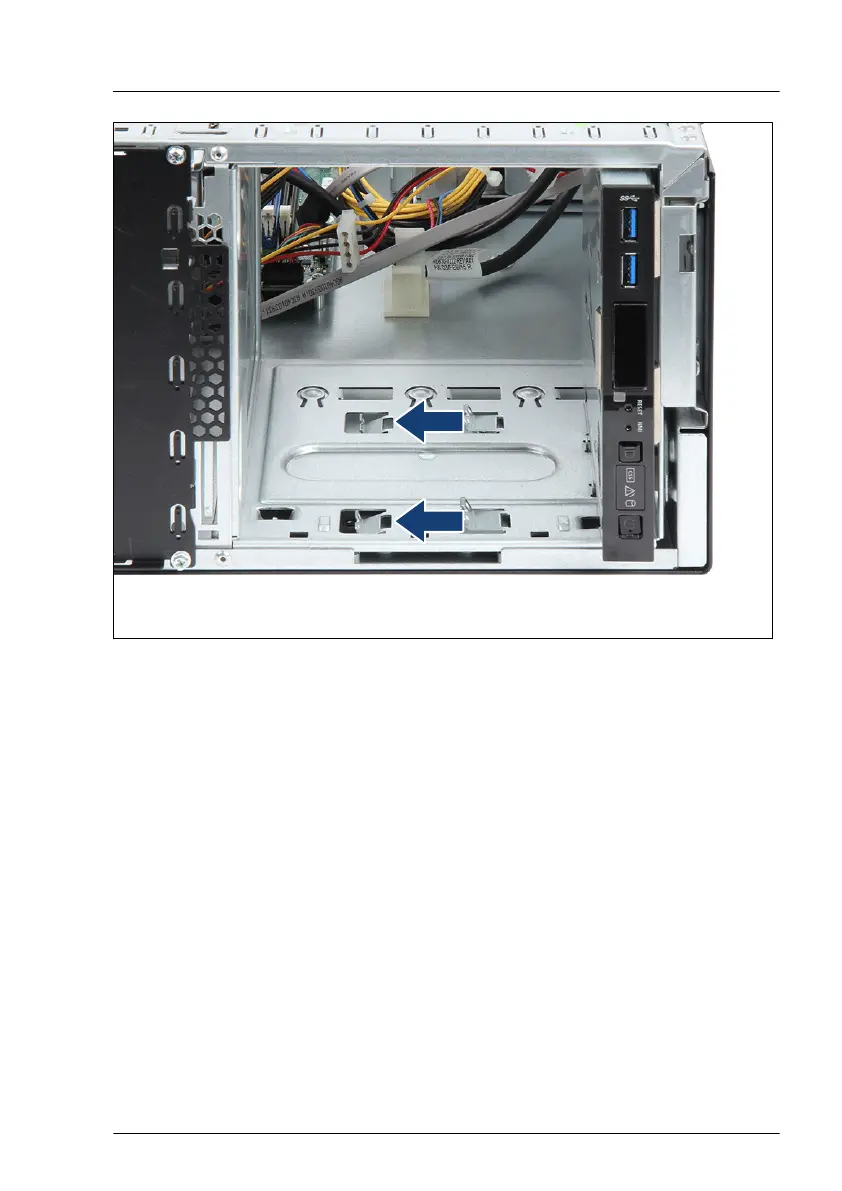

Figure 143: Bending in mounting brackets
▶
Using a screw driver, bend the four mounting brackets of the middle
installation bay (bay 2) inwards (see close-up):
▶
Bend in the lower two mounting brackets on each side of the drive cage.
▶
Open the accessible drive locking bar
, see "Opening the accessible drive
locking bar" on page 89.
Hard disk drive (HDD) / solid state disk (SSD)
TX1330 M4 Upgrade and Maintenance Manual 243
