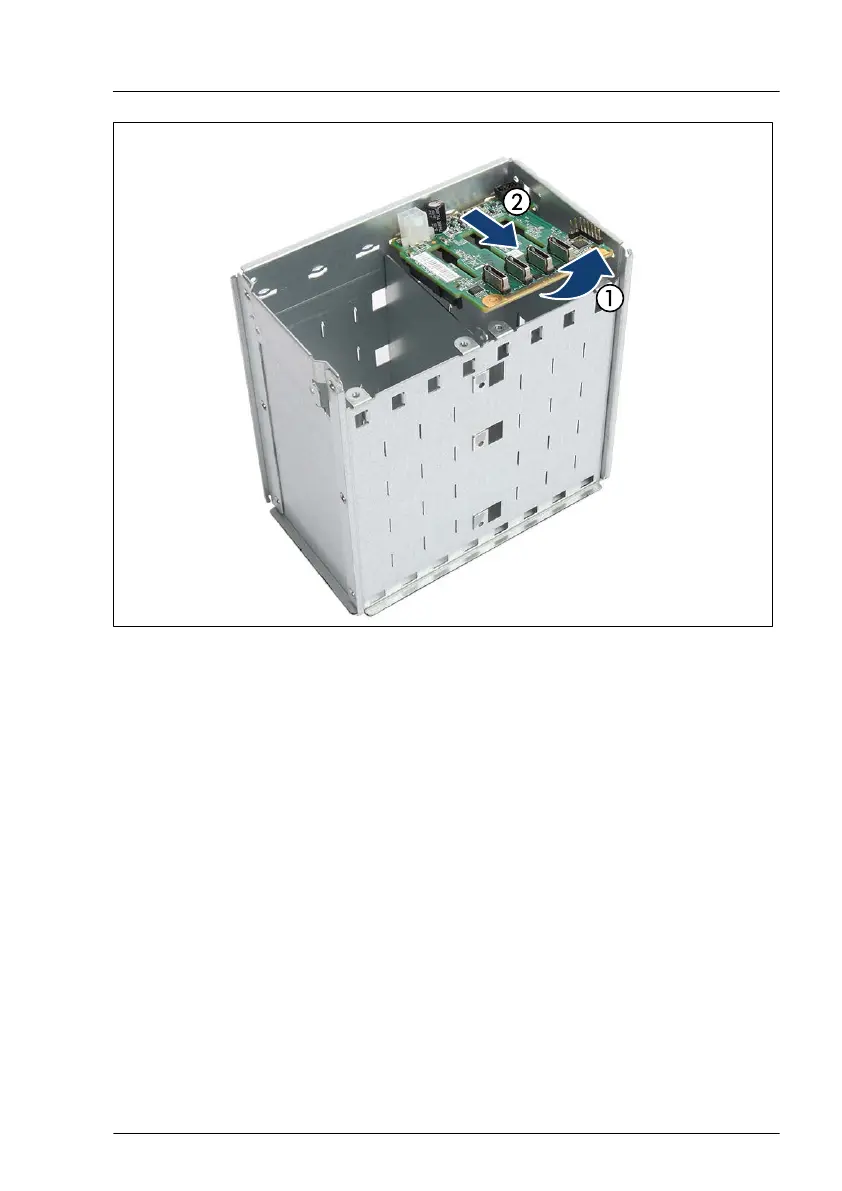

Figure 151: Removing the PCIe SSD backplane (B)
▶
Fold up the PCIe SSD backplane and at a slight angle (1), remove it from
the recesses in the PCIe SSD extension box (2).
Installing the new HDD/SSD backplane
8x 2.5-inch HDD/SSD backplane
Hard disk drive (HDD) / solid state disk (SSD)
TX1330 M4 Upgrade and Maintenance Manual 253
