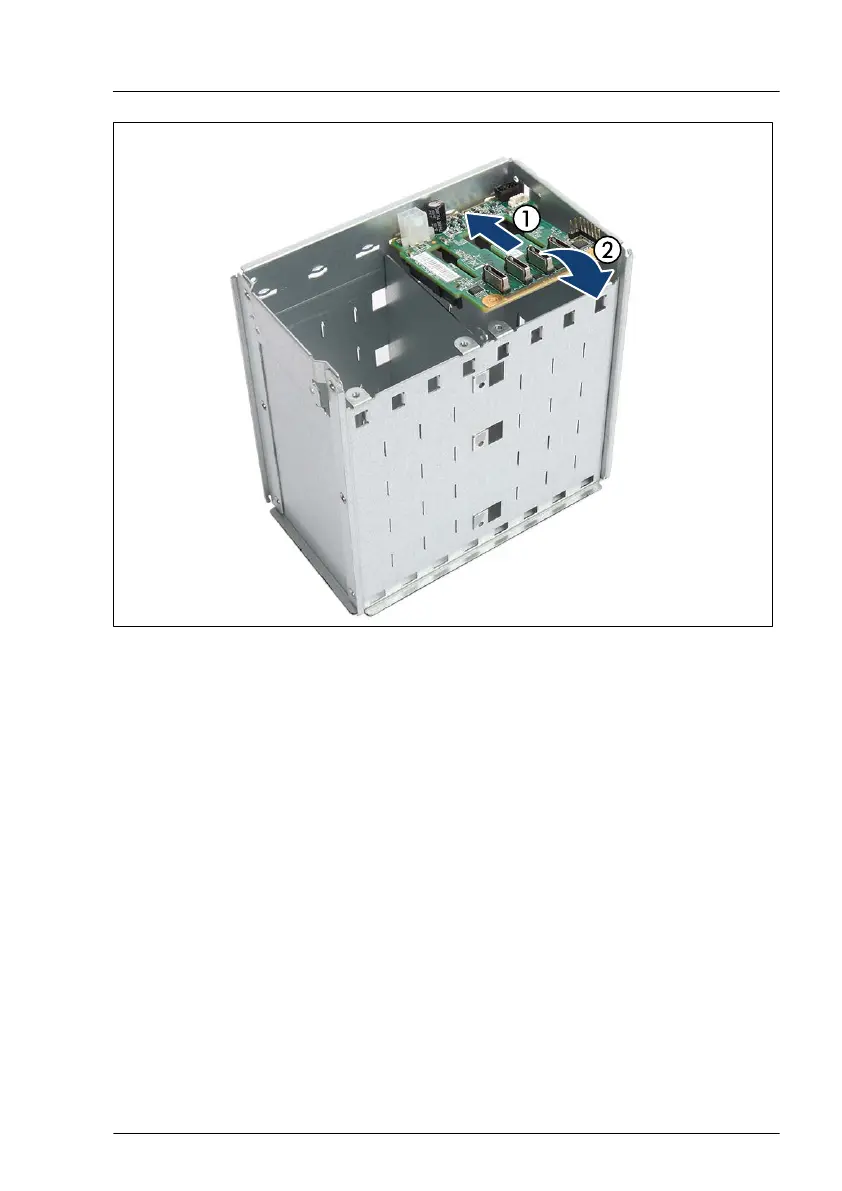

Figure 153: Installing the PCIe SSD backplane (A)
▶
At a slight angle, fit the PCIe SSD backplane into the three recesses in the
PCIe SSD extension box (1).
▶
Fold down the HDD/SSD backplane (2).
▶
Fasten the HDD/SSD backplane with two screws (see Figure 150).
Concluding steps
▶
Install the 8x 2.5-inch HDD/SSD extension box, see "Installing the 8x 2.5-
inch HDD/SSD extension box" on page
241.
▶
"Reassembling" on page 66
.
▶
Reinstall all HDDs/SSDs into their original bays in the HDD extension box,
see "Installing 2.5-inch HDD/SSD modules" on page 214.
▶
"Connecting the power cord" on page 79.
▶
"Switching on the server" on page 81.
