Connecting cables

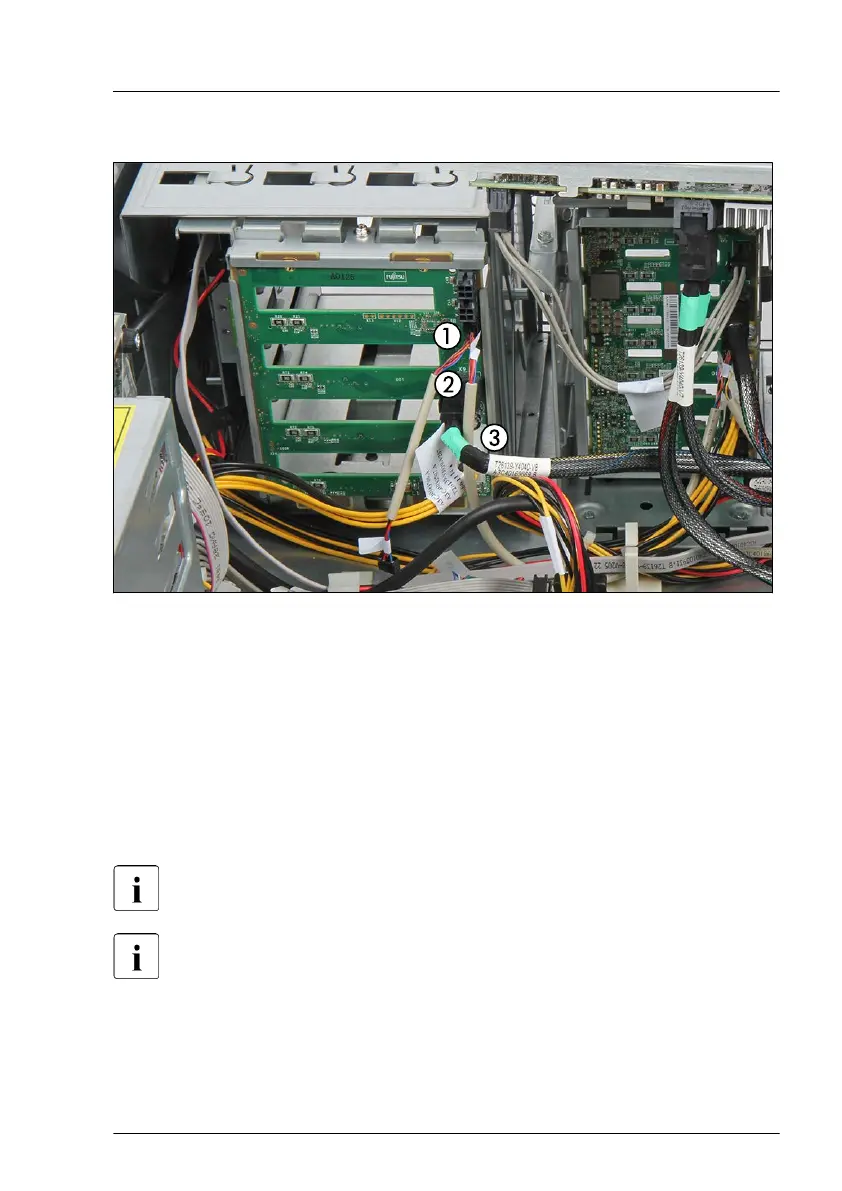

Figure 156: Connecting cables to the 4x 3.5-inch HDD extension box
▶
Connect the cables to the backplane:
1 If applicable, OOB cable
2 SAS cable
3 Power cable
▶
If applicable, connect the SATA cable of the ultraslim ODD to the system
board, see "Installing the ultraslim ODD" on page
384.
For more information about connecting SAS cables to the SAS
expander board, see "Installing the SAS expander board" on page 268.
For the cable plan, see "Appendix B" on page 519.
Hard disk drive (HDD) / solid state disk (SSD)
TX1330 M4 Upgrade and Maintenance Manual 259
