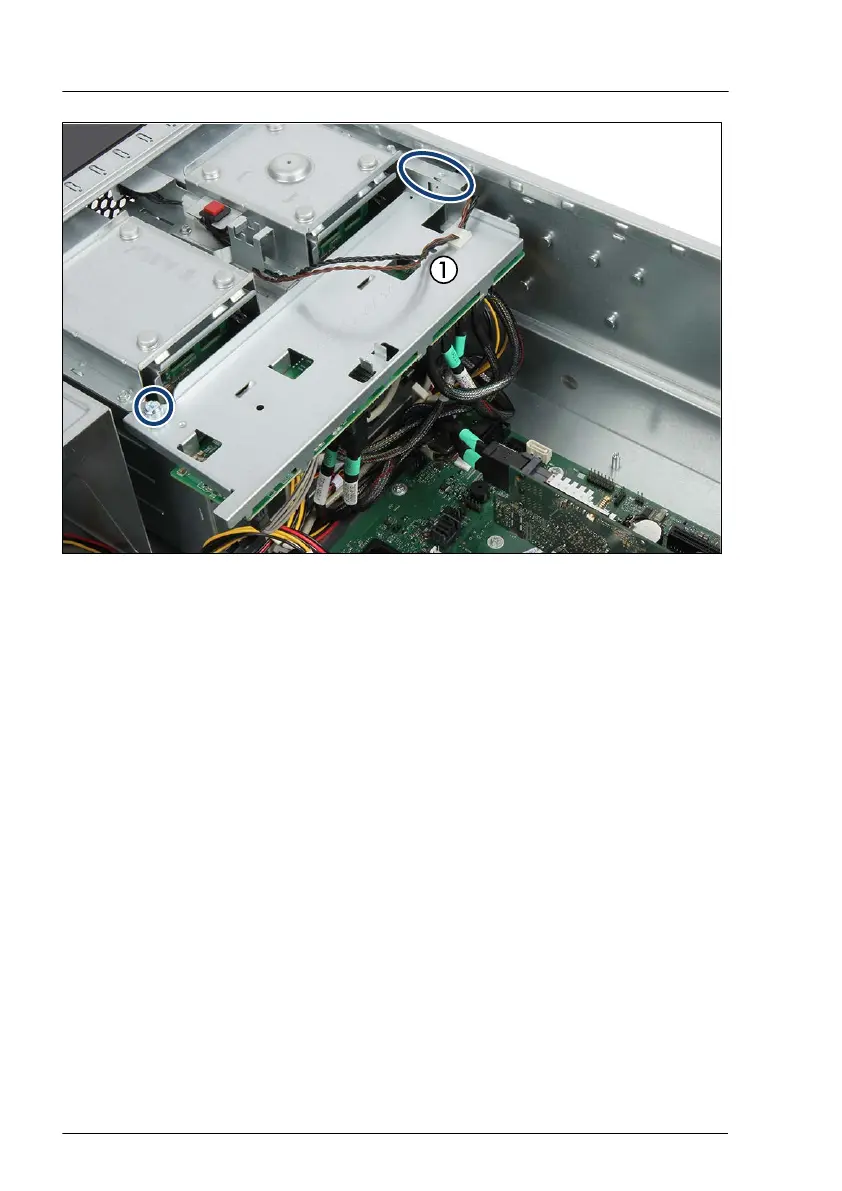

Figure 167: Installing the SAS expander board holder (B)
▶
Place the expander board that the two hooks fit with the two recesses (see
oval).
▶
Fasten the expander board with the knurled screw (see circle).
▶
Route the intrusion switch cable as shown (1).
Concluding steps
▶
"Reassembling" on page
66
.
▶
"Connecting the power cord" on page 79.
▶
"Switching on the server" on page 81.
▶
"Resuming BitLocker functionality" on page 121.
