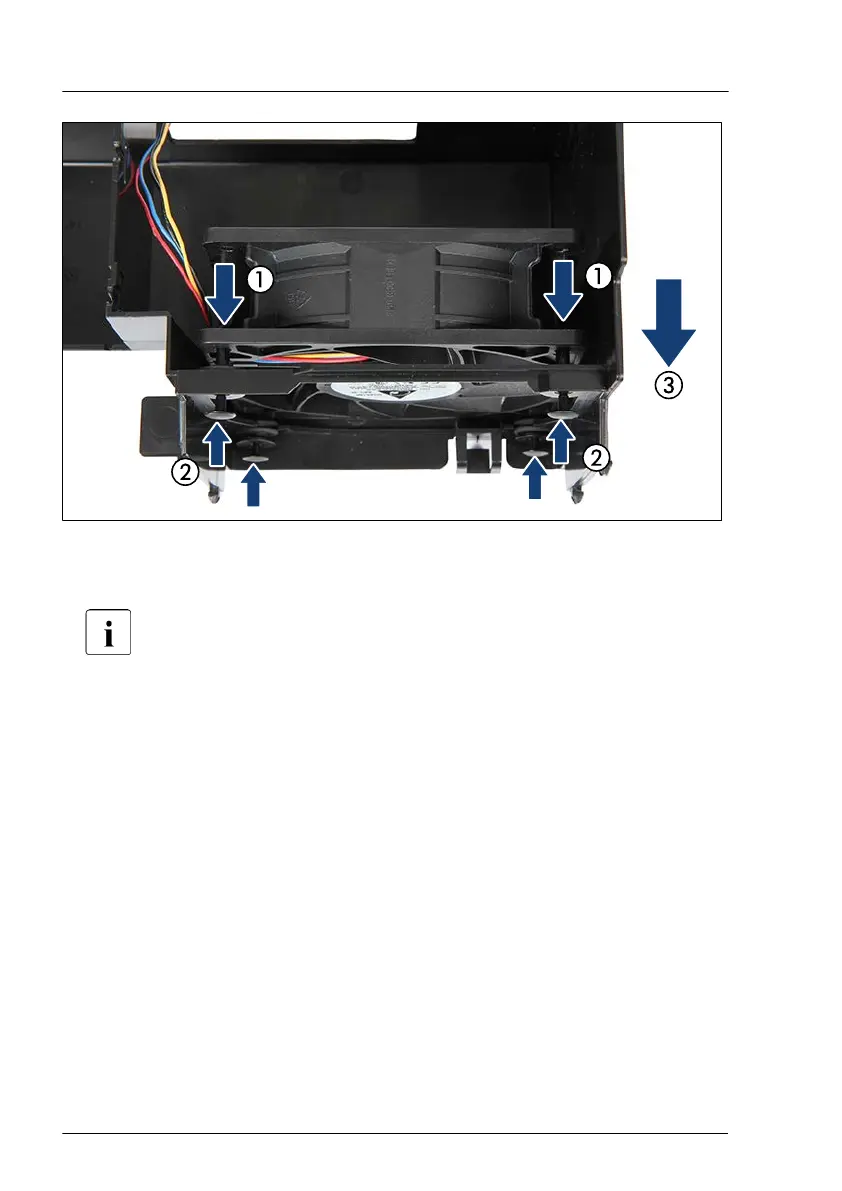

Figure 176: Installing the system fan in the air duct
▶
Push the system fan on the snap rivets (1).
Notice the position of the fan cable. Ensure that the fan cable is not
pressed.
▶
Insert and tightly push the four safety pins into the snap rivets (2).
▶
T
ake note of the air flow (3).
▶
Insert the fan cable in the corresponding guidings (see Figure 172
and see
Figure 173).
Concluding steps
▶
Install the system fan module, see "Installing the system fan module" on
page 85.
▶
"Reassembling" on page 66.
▶
"Connecting the power cord" on page 79.
Fans
284 Upgrade and Maintenance Manual TX1330 M4
