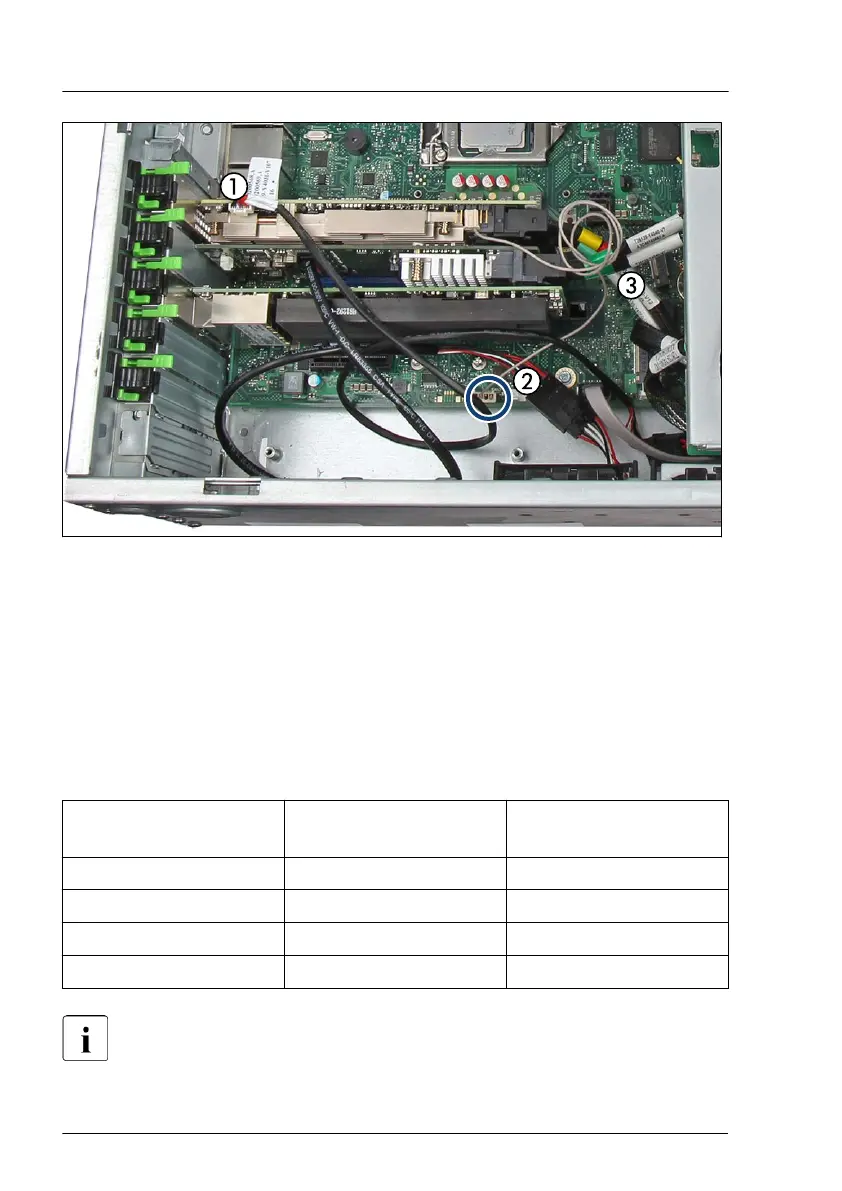

Figure 192: PRAID EP5x0i - Connecting cables
▶
Connect the cables of the PRAID EP5x0i:
1 If applicable, FBU cable to the FBU.
2 HDD LED cable to connector "HDD LED" on the system board.
3 SAS cables or Oculink cables to the backplanes (depending on the
configuration).
For Oculink cables:
Color Connector on EP5x0i Connector on PCIe
SSD backplane
red C0 P3_X4
yellow C1 P2_X3
green C2 P1_X2
black C3 P0_X1
For the cable plan, see "Appendix B" on page 519
.
Expansion cards and backup units
304 Upgrade and Maintenance Manual TX1330 M4
