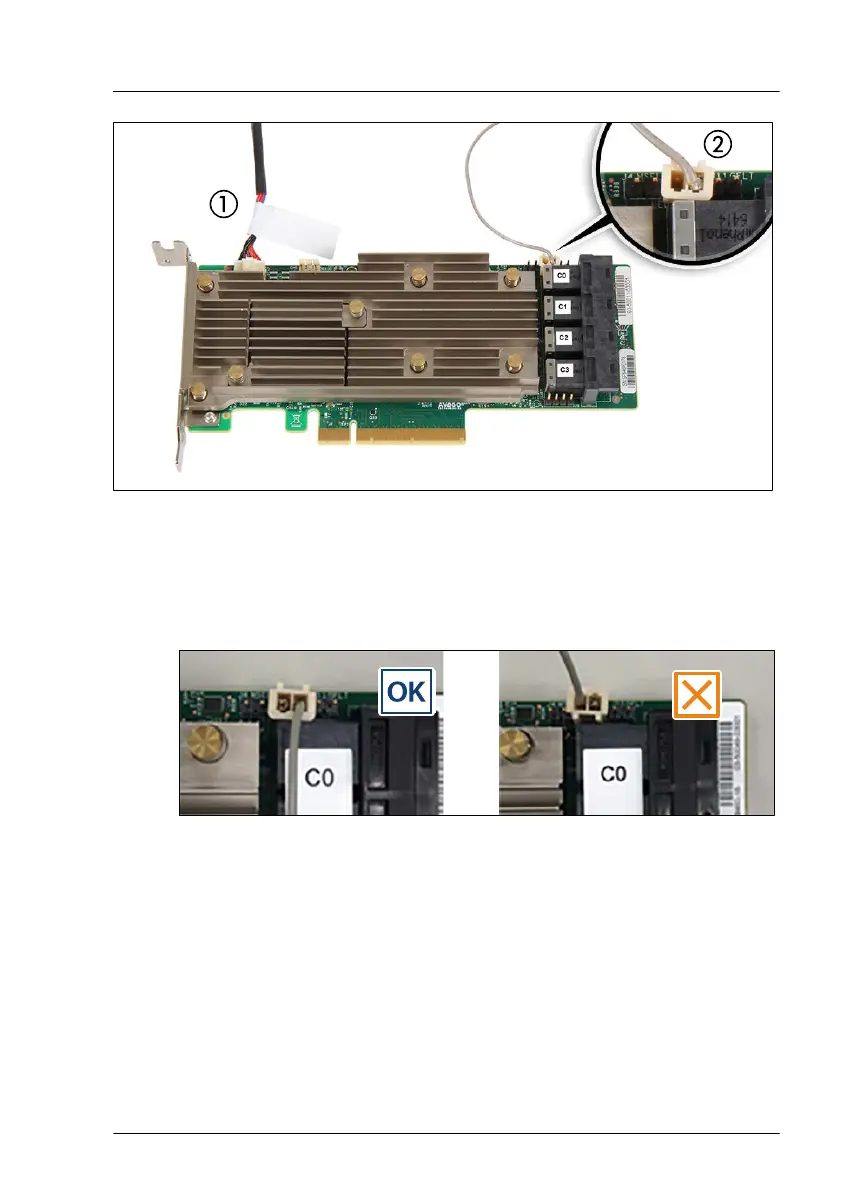

Figure 191: Connecting cables - PRAID EP5x0ixi
▶
Connect the cables to the PRAID EP5x0i:
1 If applicable, FBU cable
2 HDD LED cable
▶
Install the PRAID EP5x0i in slot 3, see "Installing the SAS expander board
holder " on page 271
.
Expansion cards and backup units
TX1330 M4 Upgrade and Maintenance Manual 303
