Installing the slot cover
CAUTION
▶
Keep the slot cover for future use.
▶
If the expansion card is removed and not replaced with a new one,
the slot cover must be reinstalled due to cooling, to comply with
applicable EMC regulations and to protect against fire.

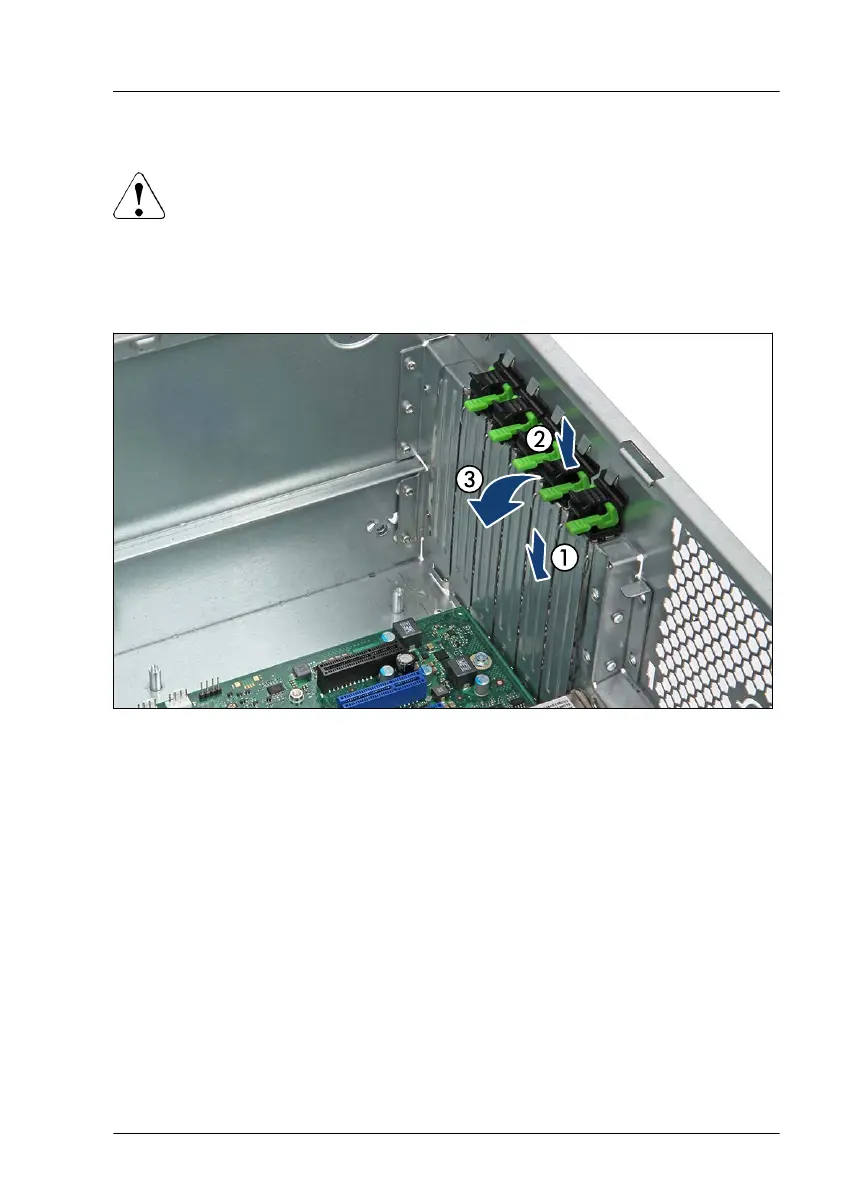

Figure 194: Installing the slot cover
▶
Insert a slot cover into the unused PCI slot opening (1).
▶
Clip on the slot cover clamp (2).
▶
Fold down the locking handle on the slot cover clamp until it locks in place
(3).
Concluding steps
▶
If applicable, install the SAS expander board holder
, see "Installing the
system fan module" on page
85.
▶
Install the system fan module, see "Installing the system fan module" on
page 85.
▶
"Reassembling" on page 66.
Expansion cards and backup units
TX1330 M4 Upgrade and Maintenance Manual 307
