Fujitsu PRIMERGY TX1330 M4

▶
If applicable, remove the SAS expander board holder SAS expander board
holder without disconnecting cables, see "Removing the SAS expander
board holder" on page 273. Position the SAS expander board holder on the
HDD cages to get more space.
Removing the defective riser card
▶
Remove the expansion card from the riser card slot, see "Removing an
expansion card" on page
305.

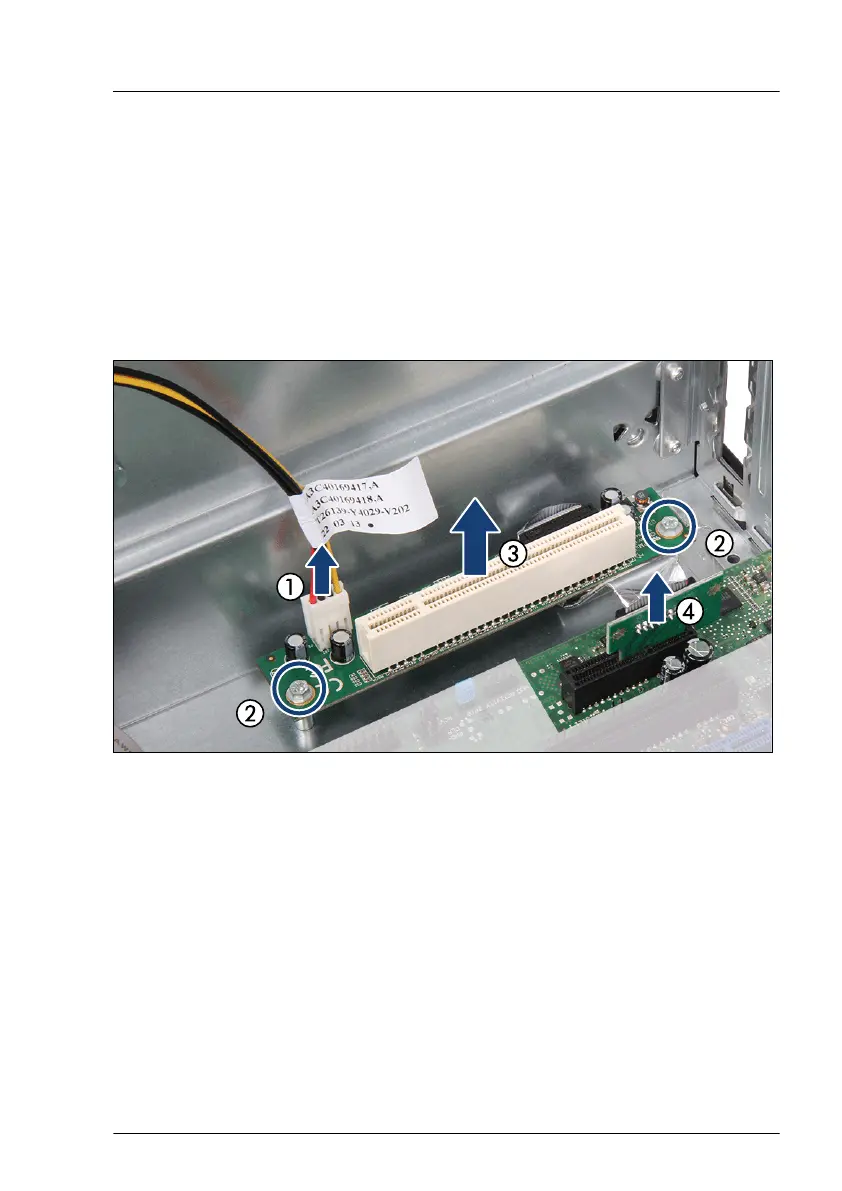

Figure 195: Removing the riser card
▶
Disconnect the power cable (1).
▶
Remove the two screws (2).
▶
Remove the riser card (3).
▶
Remove the PCI adapter board from slot 1 (4).
Expansion cards and backup units
TX1330 M4 Upgrade and Maintenance Manual 311
