Installing the new riser card

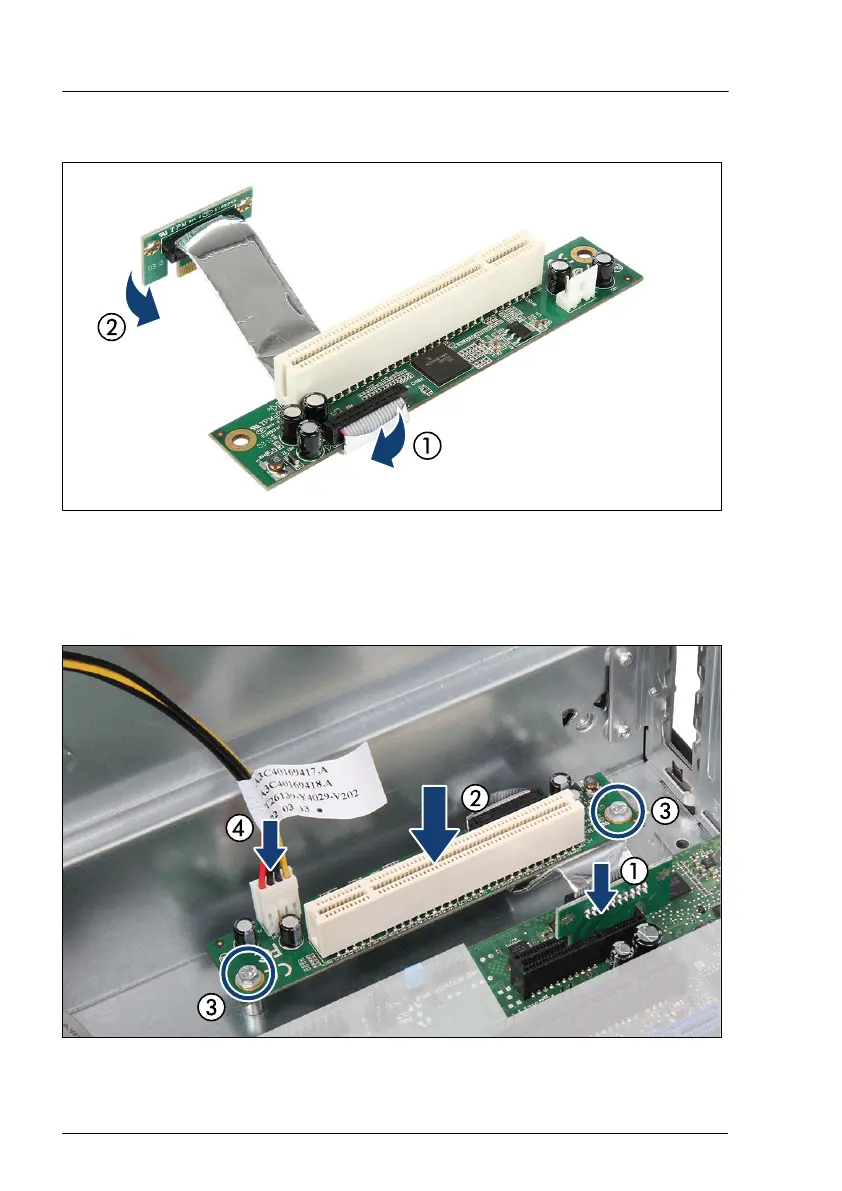

Figure 196: Preparing the riser card
▶
Fold the cable under the riser card (1).
▶
Angle the PCI adapter board (2).
Figure 197: Installing the riser card
Expansion cards and backup units
312 Upgrade and Maintenance Manual TX1330 M4
