Preliminary steps
▶
"Locating the defective server" on page 45
.
▶
"Shutting down the server" on page 47.
▶
"Disconnecting the power cord" on page 48.
▶
"Getting access to the component" on page 50.
▶
Remove the system fan module, see "Removing the system fan module" on
page 82
Removing the defective TFM
▶
Remove the depending expansion card, see "Removing an expansion card"
on page 305.
Example RAID controller

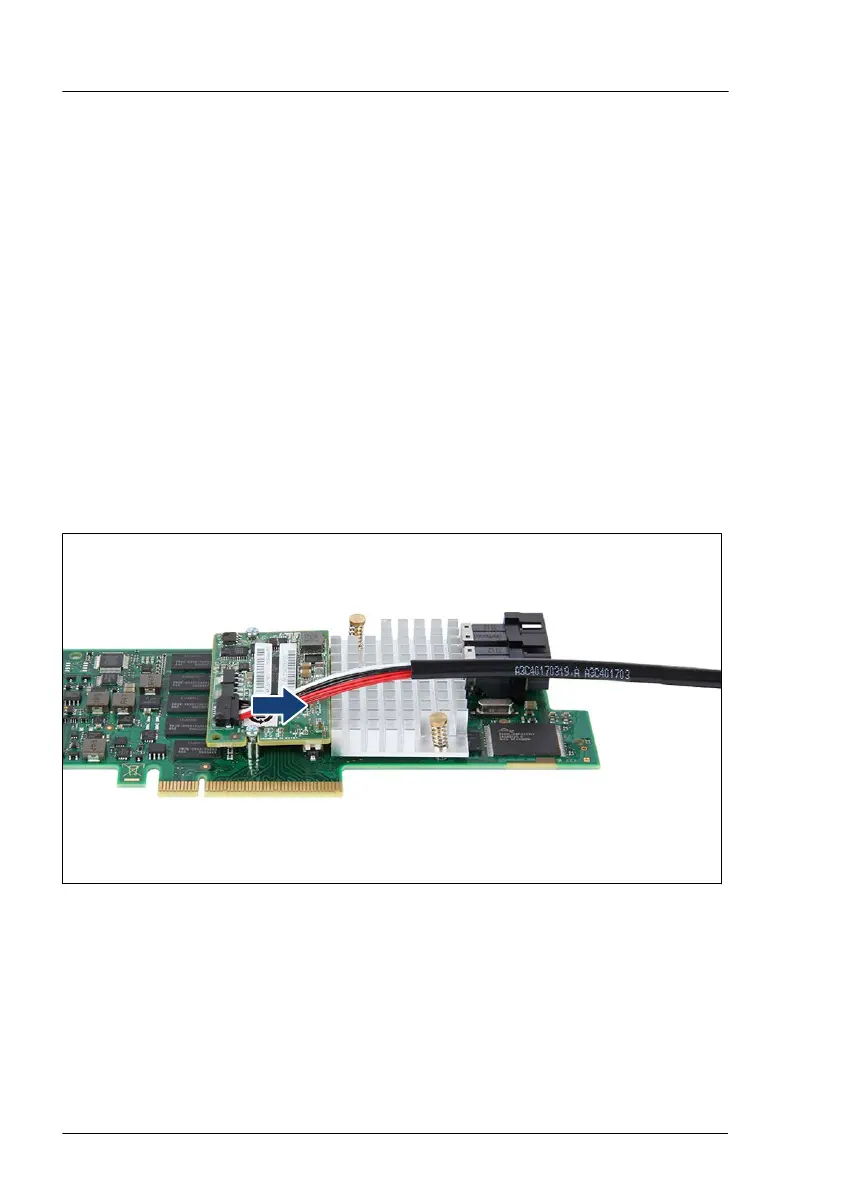

Figure 198: Disconnecting the FBU adapter cable from the TFM
▶
Disconnect the FBU adapter cable from the TFM.
Expansion cards and backup units
314 Upgrade and Maintenance Manual TX1330 M4
