Installing the FBU

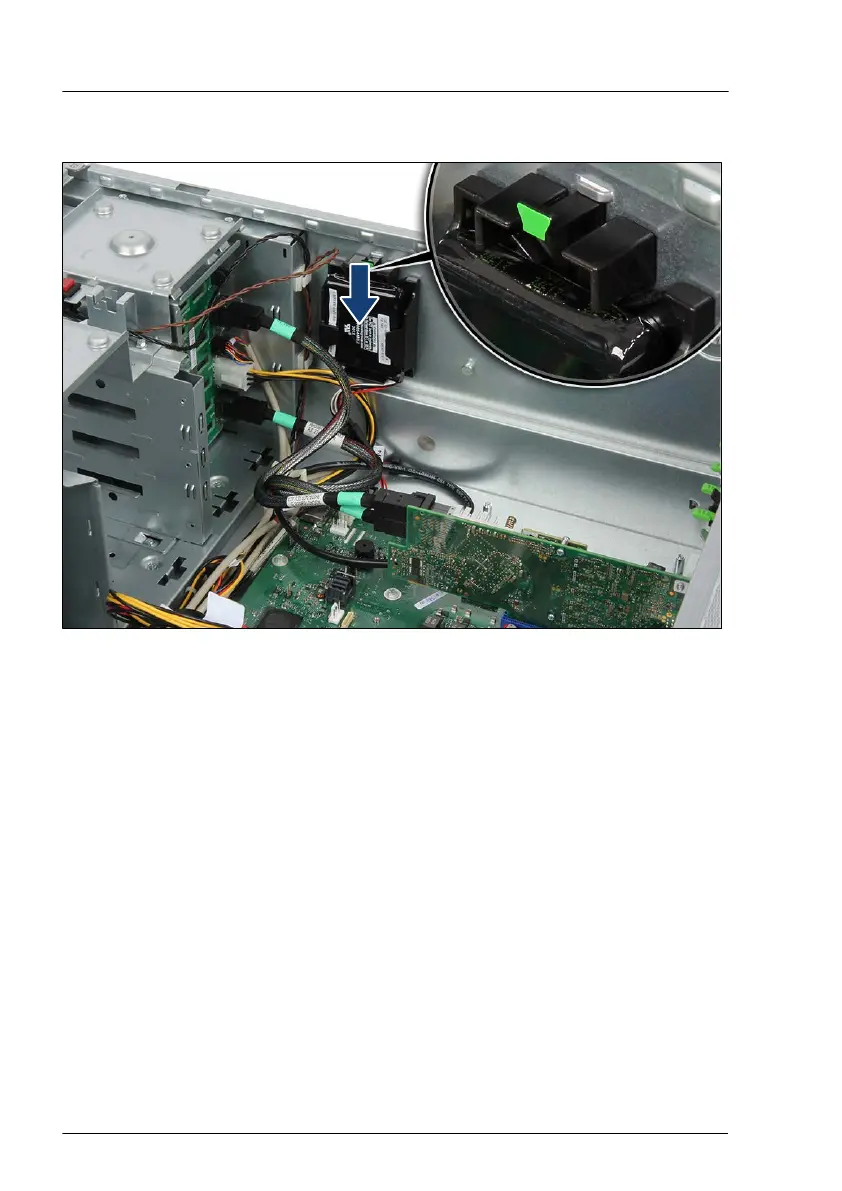

Figure 206: Installing the FBU with the FBU holder
▶
Place the FBU holder to the three shoulder screw caps in the chassis.
▶
Push the FBU holder direction of the arrow until it engages.
▶
Ensure that the locking handle on the FBU holder properly snaps in place
(see close-up).
Expansion cards and backup units
322 Upgrade and Maintenance Manual TX1330 M4
