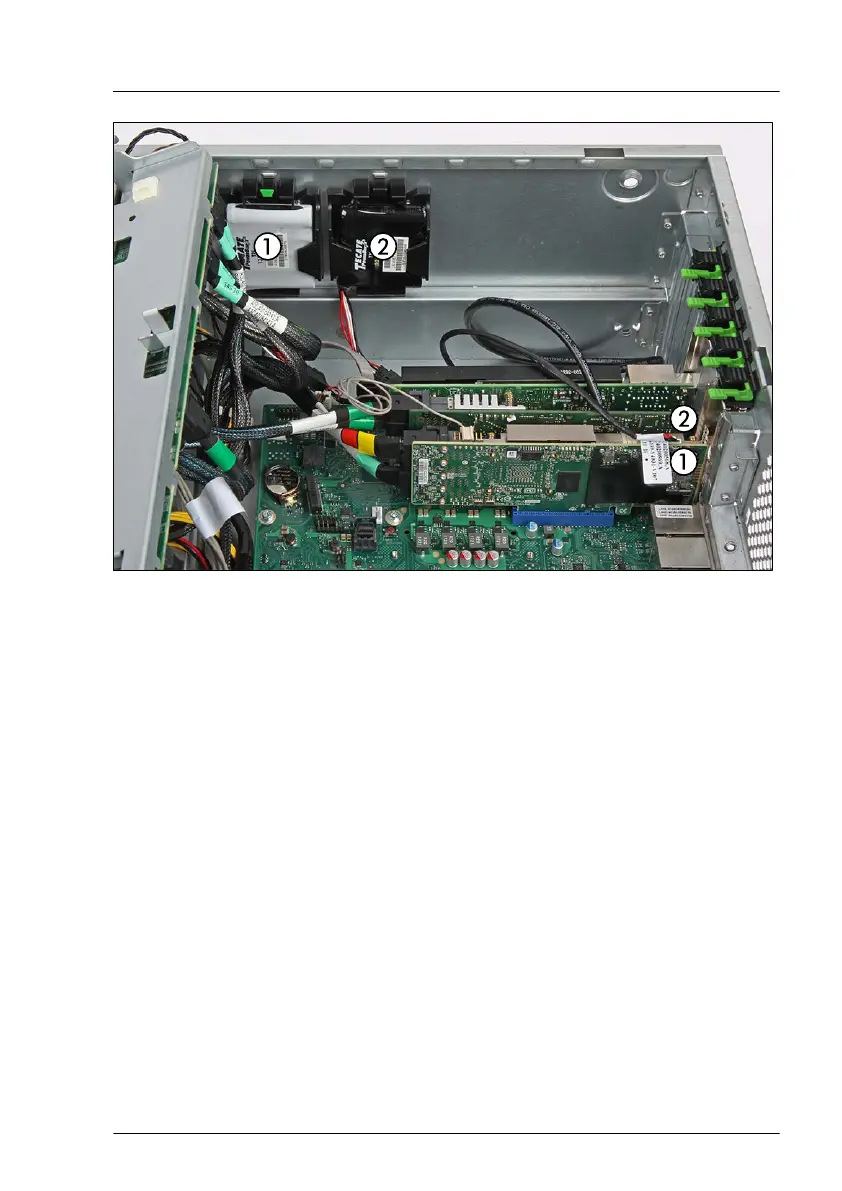

Figure 207: Example configuration with FBU and FBU 345
1 FBU 345 with PRAID EP5x0i 2 FBU with PRAID EP4x0i
Concluding steps
▶
If applicable, install the SAS expander board holder
, see "Installing the SAS
expander board holder " on page
271.
▶
Install the system fan module, see "Installing the system fan module" on
page 85.
▶
"Reassembling" on page 66.
▶
"Connecting the power cord" on page 79.
▶
"Switching on the server" on page 81.
▶
"Updating expansion card firmware" on page 106.
Expansion cards and backup units
TX1330 M4 Upgrade and Maintenance Manual 323
