Installing the heat sink

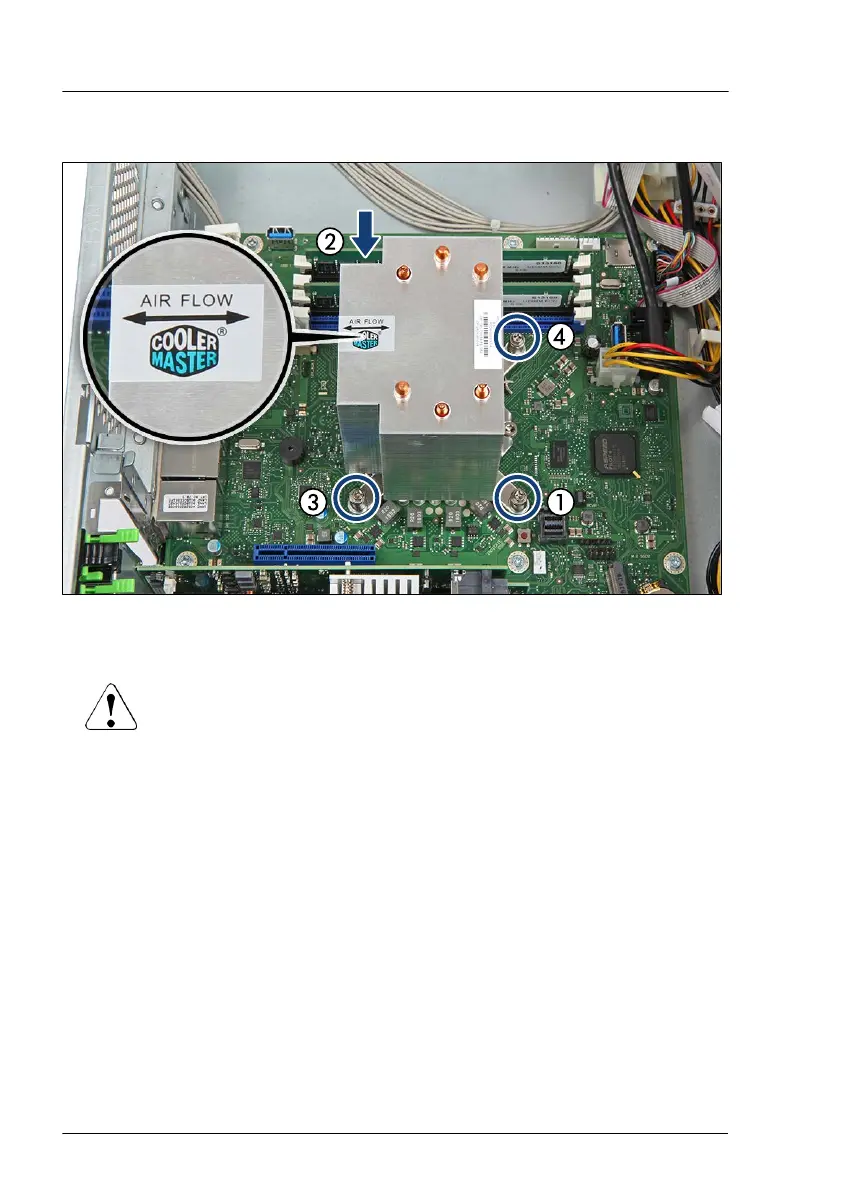

Figure 227: Installing the heat sink
▶
Carefully place the heat sink on the four threaded holes as shown.
CAUTION
▶
Ensure that the screws on the heat sink are properly seated on
the threaded holes.
▶
Ensure that the heat sink cooling fins match the direction of the
airflow (see close up).
▶
Fasten the four captive screws on the heat sink in a crossover pattern
(screw torque: 0.6
Nm, not applicable for Japan) (1-4).
Concluding steps
▶
Install the system fan module, see "Installing the system fan module" on
page 85.
▶
"Reassembling" on page
66.
▶
"Connecting the power cord" on page 79.
Processor (CPU)
352 Upgrade and Maintenance Manual TX1330 M4
