Fujitsu PRIMERGY TX1330 M4

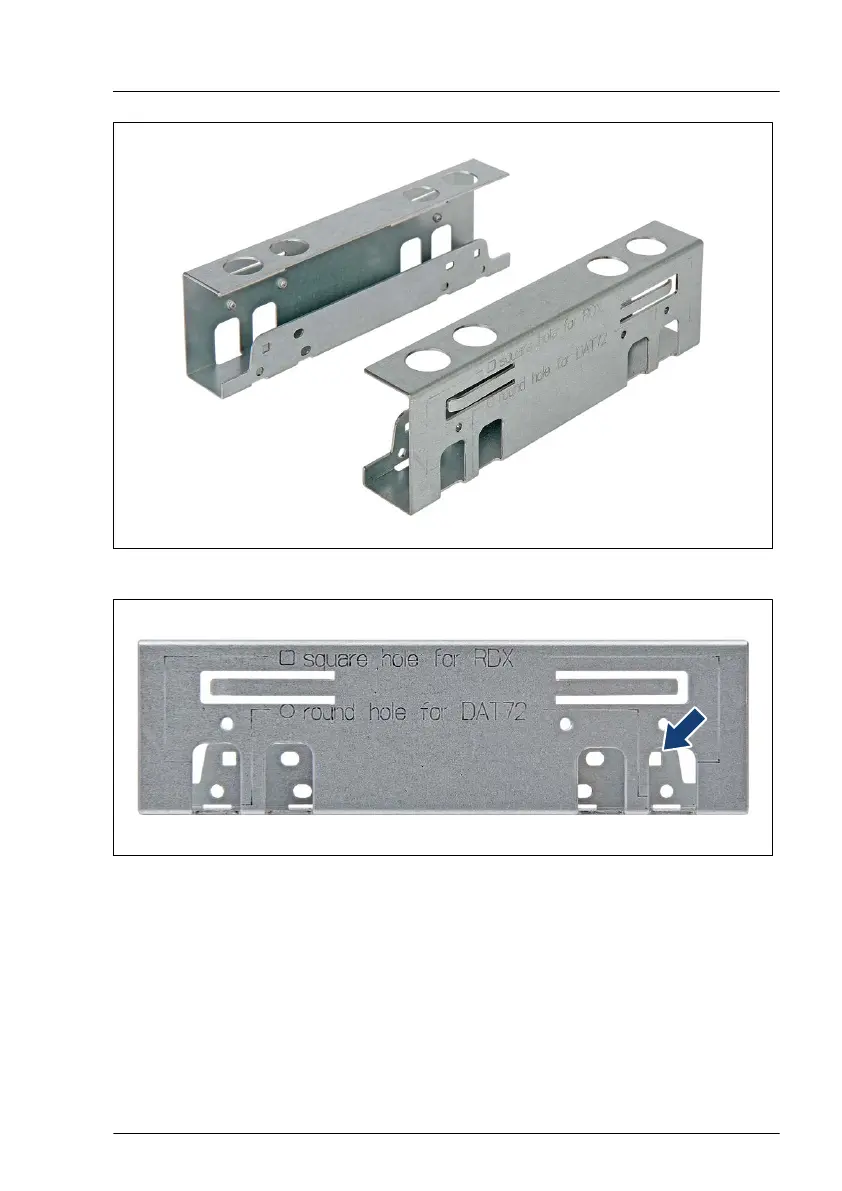

Figure 238: Backup drive mounting brackets
Figure 239: Screw holes on backup drive mounting brackets
▶
Note the screw hole description stamped onto the mounting bracket:
▶
Use the square screw hole for RDX backup drives (see blue arrow).
Accessible drives
TX1330 M4 Upgrade and Maintenance Manual 365
