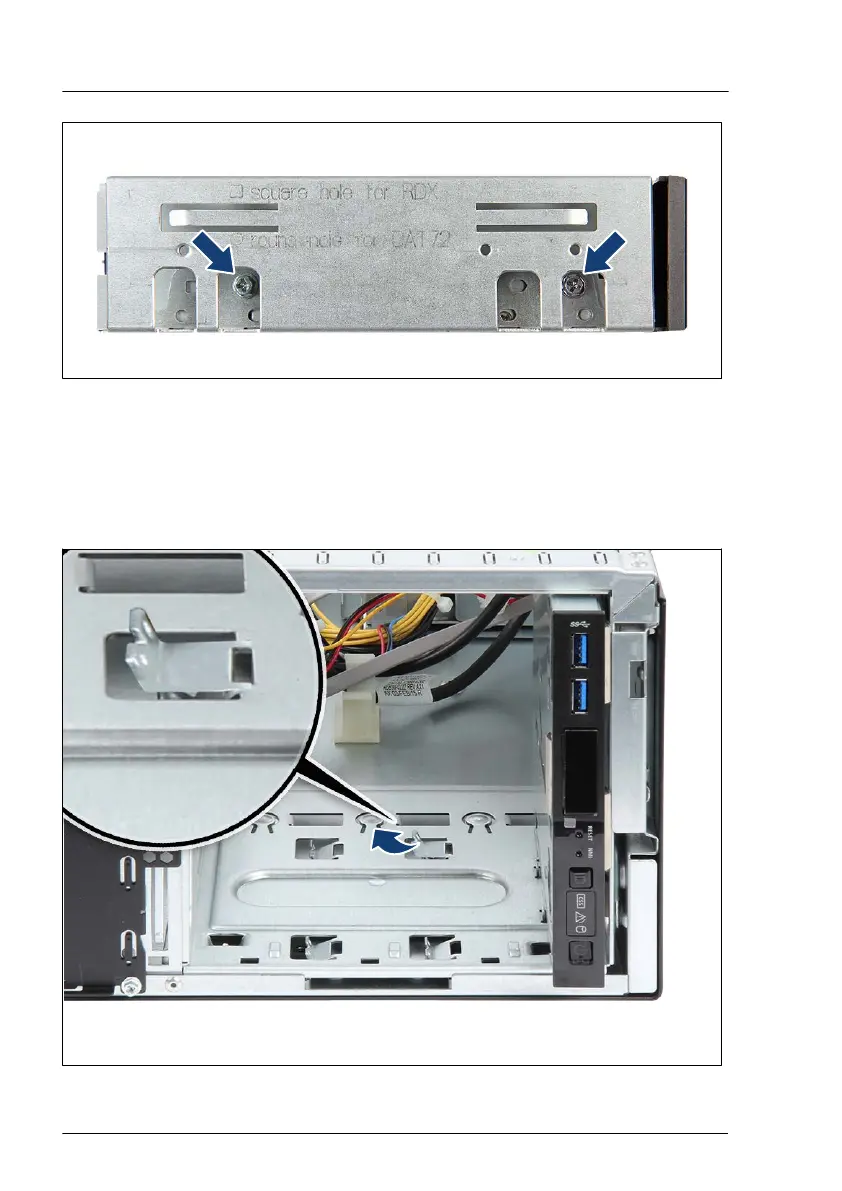

Figure 240: Securing mounting brackets to an RDX backup drive
▶
Fasten the backup drive mounting brackets to the RDX backup drive with
two screws per bracket as shown.
Installing an accessible drive
Figure 241: Mounting brackets in right position
Accessible drives
366 Upgrade and Maintenance Manual TX1330 M4
