Ensure that the four mounting brackets in the desired accessible drive bay
have not been bent inwards as for installing HDD extension boxes. If
applicable, bend the mounting brackets back to the original positions (see
close-up).
▶
Open the locking bar, see "Opening the accessible drive locking bar" on
page
89.

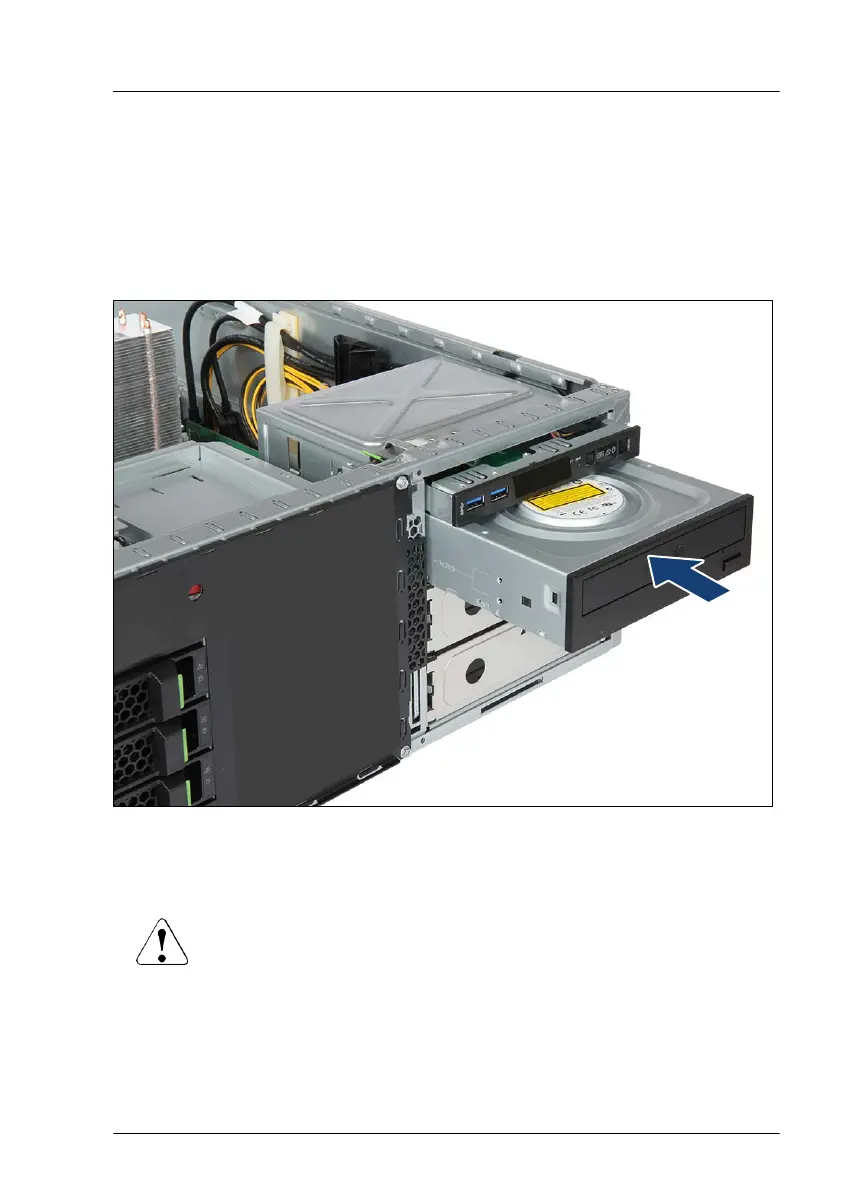

Figure 242: Inserting the accessible drive
▶
Insert the ODD into its installation bay and carefully push in until it lines up
with the front panel.
CAUTION
▶
For installing an LTO drive: ensure that the power cables run
behind the accessible drive cage are not trapped when pushing
the LT
O drive in its bay.
▶
Close the locking bar, see "Closing the accessible drive locking bar" on
page 91
.
Accessible drives
TX1330 M4 Upgrade and Maintenance Manual 367
