Connecting cables to an accessible drive (example RDX drive)

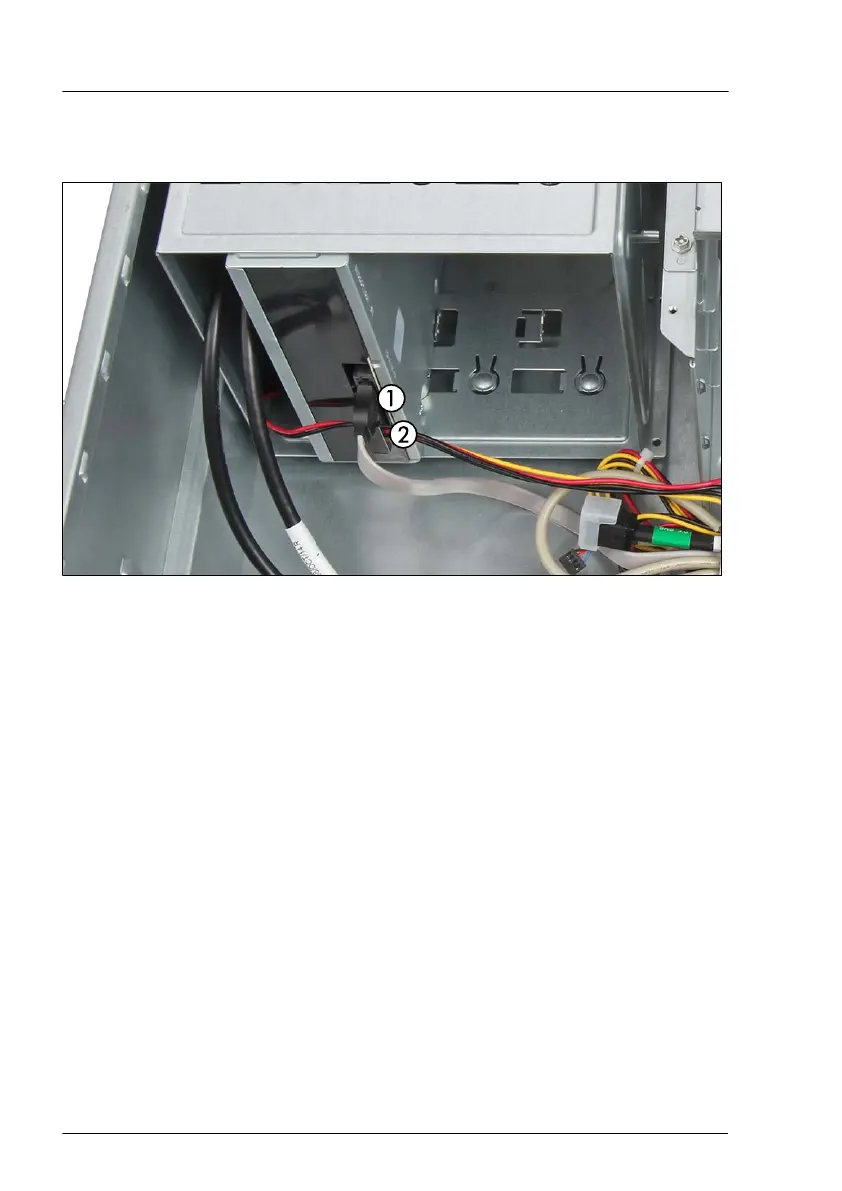

Figure 243: Connecting the RDX drive
▶
Connect the cables to the RDX drive:
1 SATA cable
2 Power cable
Accessible drives
368 Upgrade and Maintenance Manual TX1330 M4
