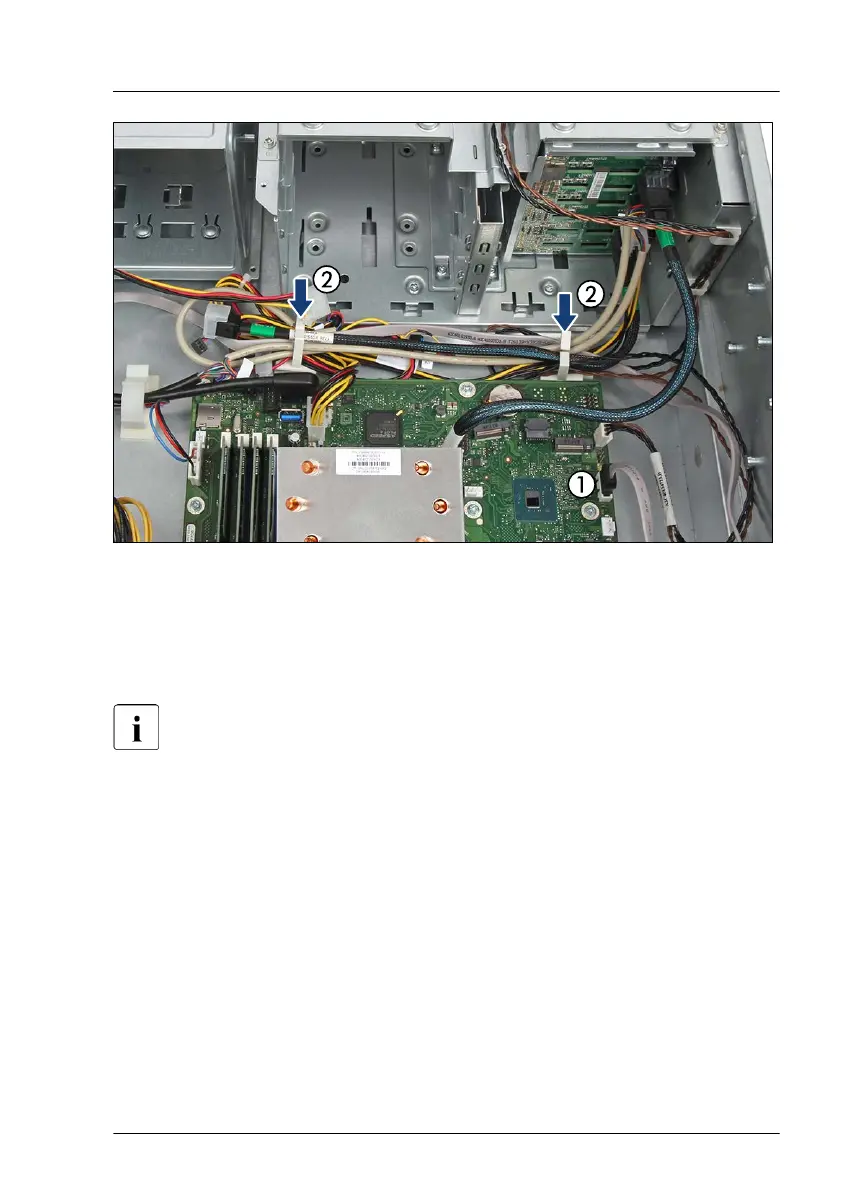

Figure 244: Connecting SATA cable
▶
Connect the SATA cable to the system board connector "SA
TA ODD" (1).
▶
Run the cables through the cable guide as shown (2).
Example LTO drive or ODD
For connecting an LTO drive or an ODD, see the cable plan in
"Appendix B" on page 519.
Concluding steps
▶
"Reassembling" on page 66
.
▶
"Connecting the power cord" on page
79.
▶
"Switching on the server" on page 81.
Accessible drives
TX1330 M4 Upgrade and Maintenance Manual 369
