Fujitsu PRIMERGY TX1330 M4

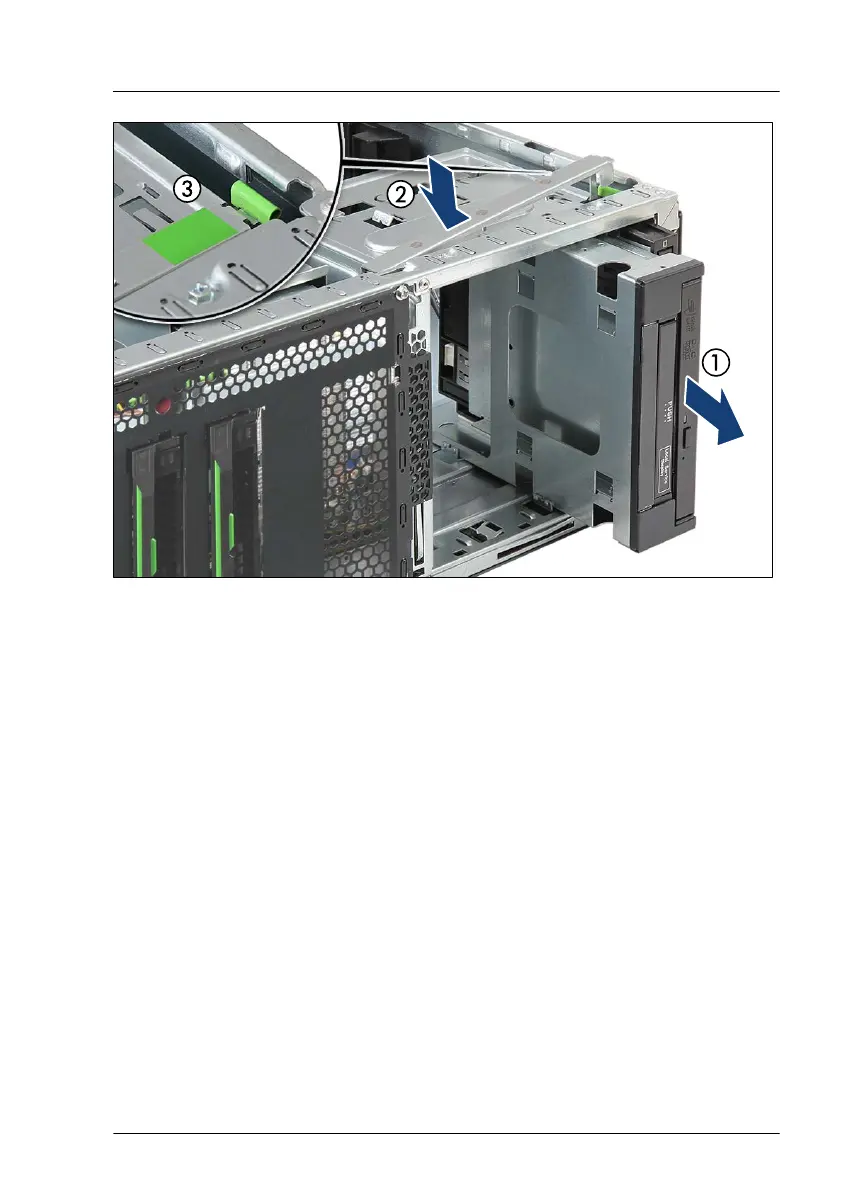

Figure 251: Removing the Multibay box
▶
Carefully pull the Multibay box out of its installation bay (1).
▶
Close the locking bar (2) until it locks in place (3).
Accessible drives
TX1330 M4 Upgrade and Maintenance Manual 379
