Removing the slimline ODD from the Multibay box

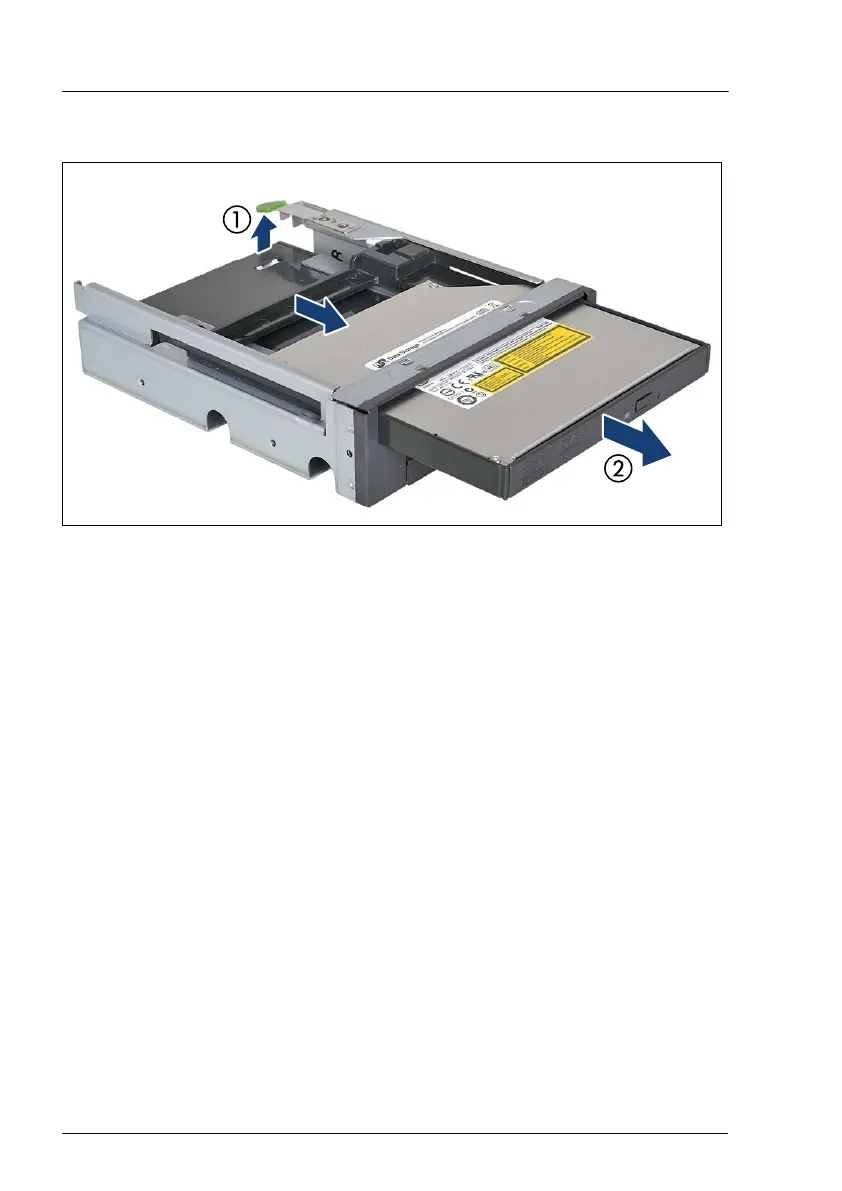

Figure 252: Removing the slimline ODD from the Multibay box
▶
Press up on the locking tab to disengage the slimline ODD module (1).
▶
From inside the Multibay box, press out on the slimline ODD module and
pull it out of its bay (2).
Accessible drives
380 Upgrade and Maintenance Manual TX1330 M4
