Installing a slimline ODD dummy module

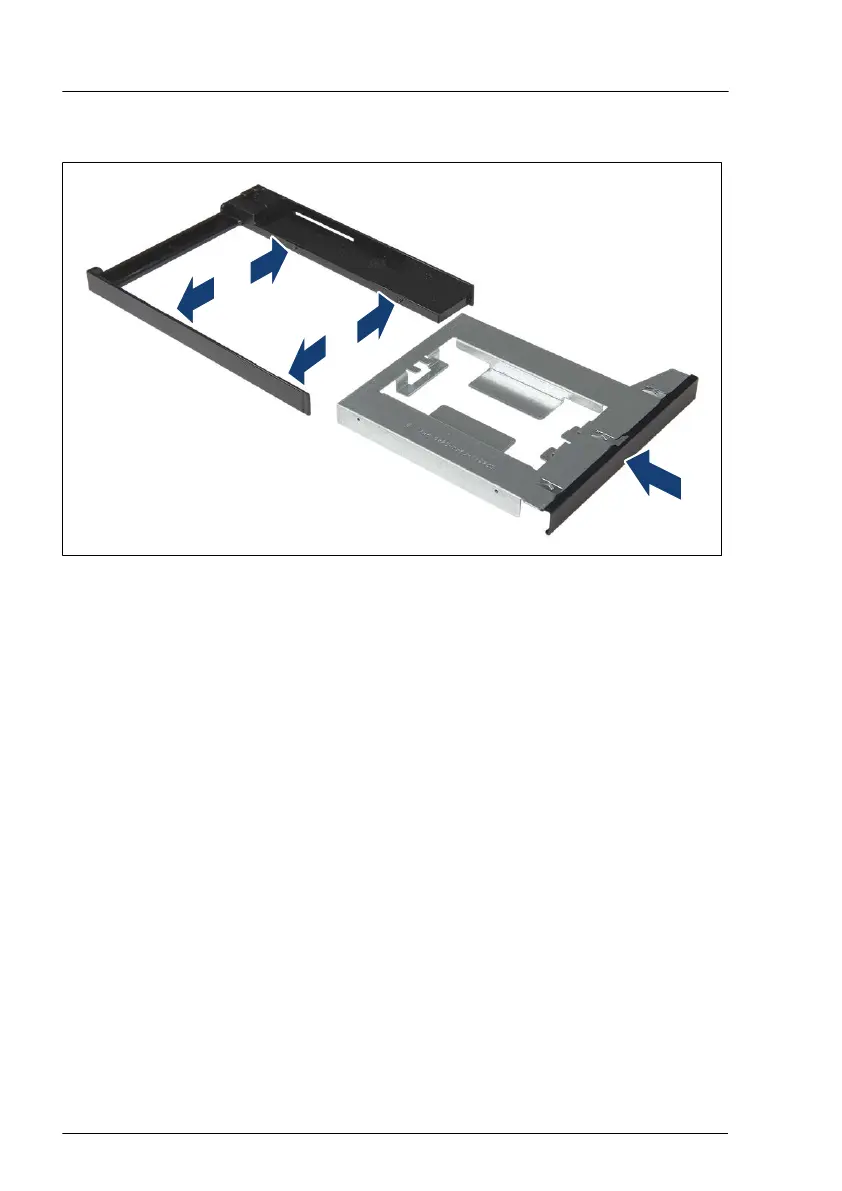

Figure 254: Mounting the slimline ODD dummy insert in the installation frame
▶
Fit the slimline ODD dummy insert into the slimline ODD installation frame.
▶
Ensure that the four pins on the frame (see arrows) engage with the side
holes on the dummy insert.
▶
Insert the slimline ODD dummy module into the Multibay box and push back
until the locking tab engages (see Figure 248).
Installing the Multibay box
▶
Install the Multibay box, see "Installing the Multibay box" on page
375.
Concluding steps
▶
"Reassembling" on page
66.
▶
"Connecting the power cord" on page 79.
▶
"Switching on the server" on page 81.
Accessible drives
382 Upgrade and Maintenance Manual TX1330 M4
