Fit the slimline ODD into the slimline ODD installation frame.
▶
Ensure that the four pins on the frame (see circles) engage with the screw
holes on the drive.
▶
Ensure that the ODD is properly seated in the installation frame.

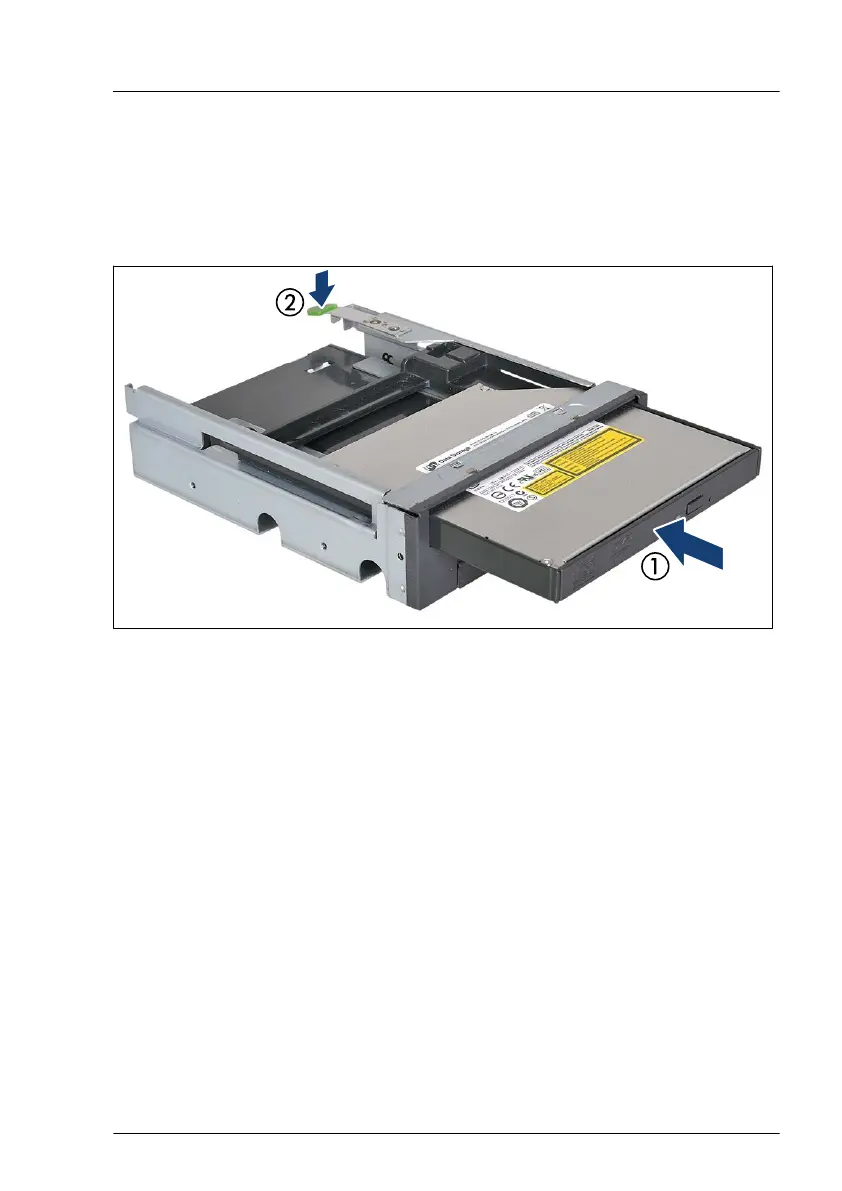

Figure 248: Mounting the slimline ODD module in the Multibay box
▶
Insert the slimline ODD module into the Multibay box (1) and push back until
the locking tab (2) engages.
Removing accessible drive dummy covers
▶
If applicable, remove the accessible drive filler cover from installation bay 1,
see "Removing accessible drive filler covers" on page
92
.
▶
If applicable, remove the accessible drive cover from installation bay 1, see
"Removing accessible drive covers" on page 95.
Installing the Multibay box
▶
Ensure that the four mounting brackets in installation bay 1 have not been
bent out (see Figure 241).
▶
Open the locking bar, see "Opening the accessible drive locking bar" on
page 89.
Accessible drives
TX1330 M4 Upgrade and Maintenance Manual 375

Fujitsu PRIMERGY TX1330 M4 Specifications

General

Chassis type	Tower
Product color	Black
HDD size	2.5 \
RAID support	Yes
HDD interface	Serial ATA III, Serial Attached SCSI (SAS)
Optical drive type	DVD±RW
Total storage capacity	0 GB
Maximum storage capacity	- TB
Number of HDDs installed	0
Number of HDDs supported	8
Bus type	DMI3
Tjunction	100 °C
Scalability	1S
Processor cache	12 MB
Processor cores	6
Processor model	E-2136
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor threads	12
Processor codename	Coffee Lake
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor boost frequency	4.5 GHz
Processor operating modes	64-bit
Embedded options available	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Design Power (TDP)	80 W
Number of processors installed	1
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR4-SDRAM
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s
Maximum internal memory supported by processor	128 GB
Compatible operating systems	Microsoft Hyper-V Server 2012 R2 Microsoft Hyper-V Server 2016 Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server 2016 Datacenter Microsoft Windows Server 2012 R2 Standard Microsoft Windows Server 2016 Standard Microsoft Windows Server 2012 R2 Essentials Microsoft Windows Server 2016 Essentials Microsoft Windows Server 2012 R2 Foundation Microsoft Windows Storage Server 2012 R2 Standard Microsoft Windows Storage Server 2016 Standard Microsoft Hyper-V Server 2012 Microsoft Windows Server 2012 Datacenter Microsoft Windows Server 2012 Standard Microsoft Windows Server 2012 Essentials Microsoft Windows Server 2012 Foundation
Memory slots	4
Internal memory	16 GB
Maximum internal memory	64 GB
LAN controller	Intel i210
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Power supply	450 W
Power supply input frequency	50 - 60 Hz
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85 %
Certification	CB, RoHS, WEEE, GS, CE, CSA us, ULc/us, FCC Class A, VCCI:V3 Class A + JIS 61000-3-2, GOST-R, KC, CCC, C-Tick, BSMI
PCI Express slots version	3.0
On-board graphics card model	Not available
Processor ARK ID	134857
Intel Secure Key Technology version	1.00

Weight and Dimensions

Depth	560 mm
Width	177 mm
Height	455 mm
