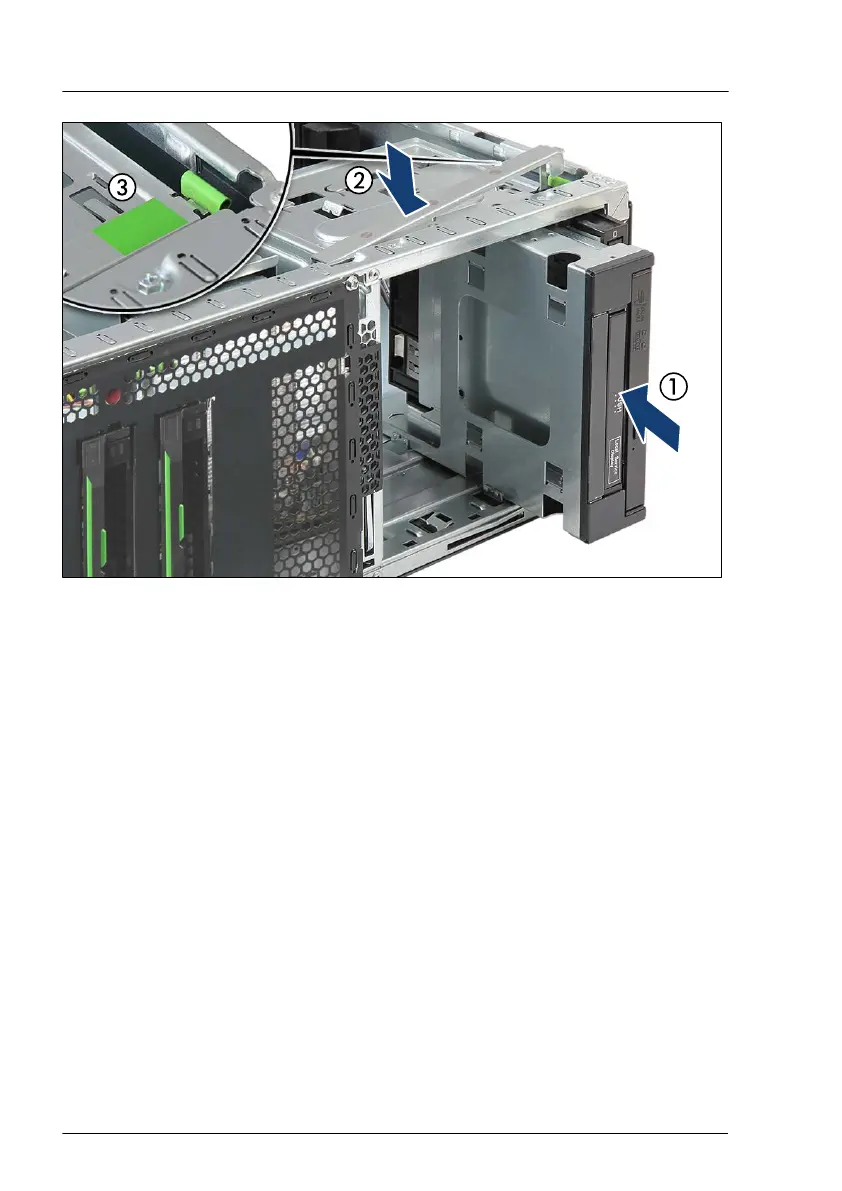

Figure 249: Inserting the Multibay box
▶
Insert the Multibay box into installation bay 1 and carefully push in until it
lines up with the front panel (1).
▶
Close the locking bar (2) until it locks in place (3).
Accessible drives
