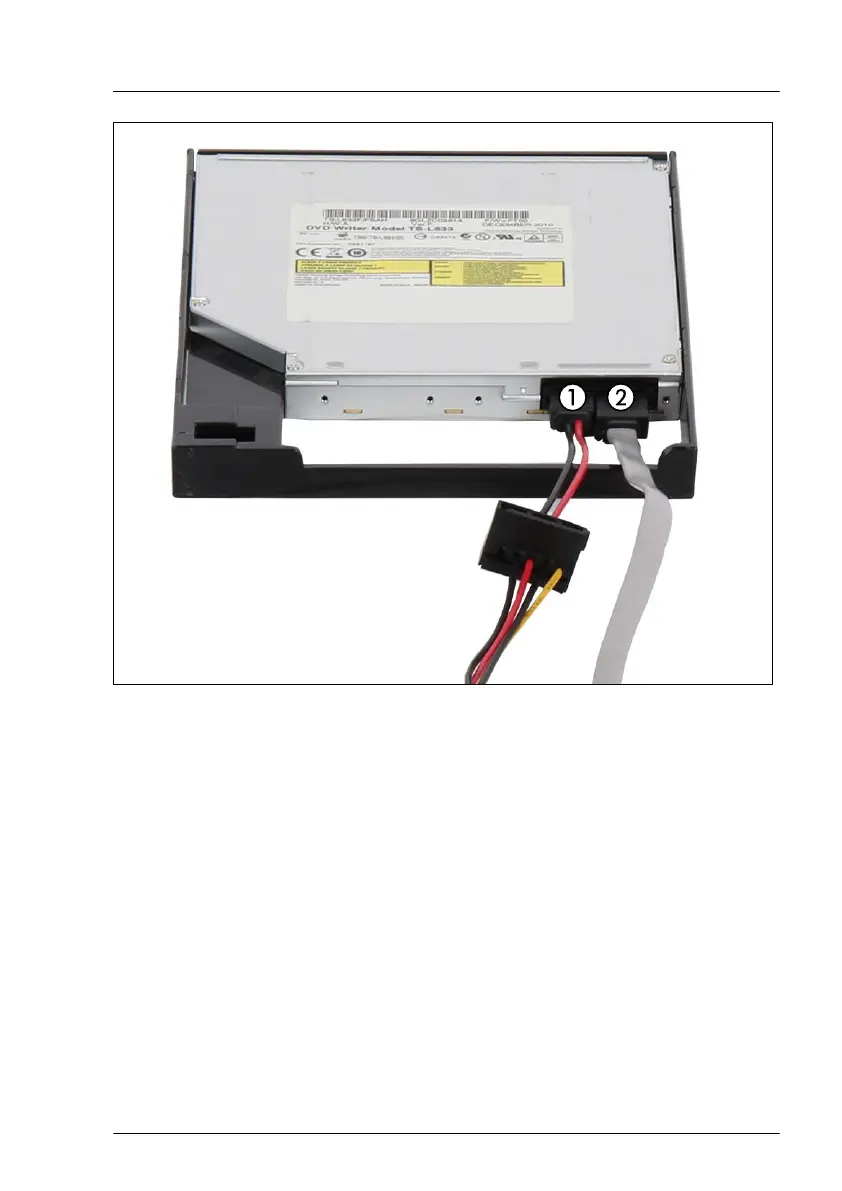

Figure 250: Connecting cables to the slimline ODD
▶
Connect the cables to the slimline ODD:
1 SATA cable
2 Power cable
▶
Connect the SA
TA cable to the system board, see Figure 244
.
Concluding steps
▶
"Reassembling" on page 66.
▶
"Connecting the power cord" on page 79.
▶
"Switching on the server" on page 81.
Accessible drives
TX1330 M4 Upgrade and Maintenance Manual 377
