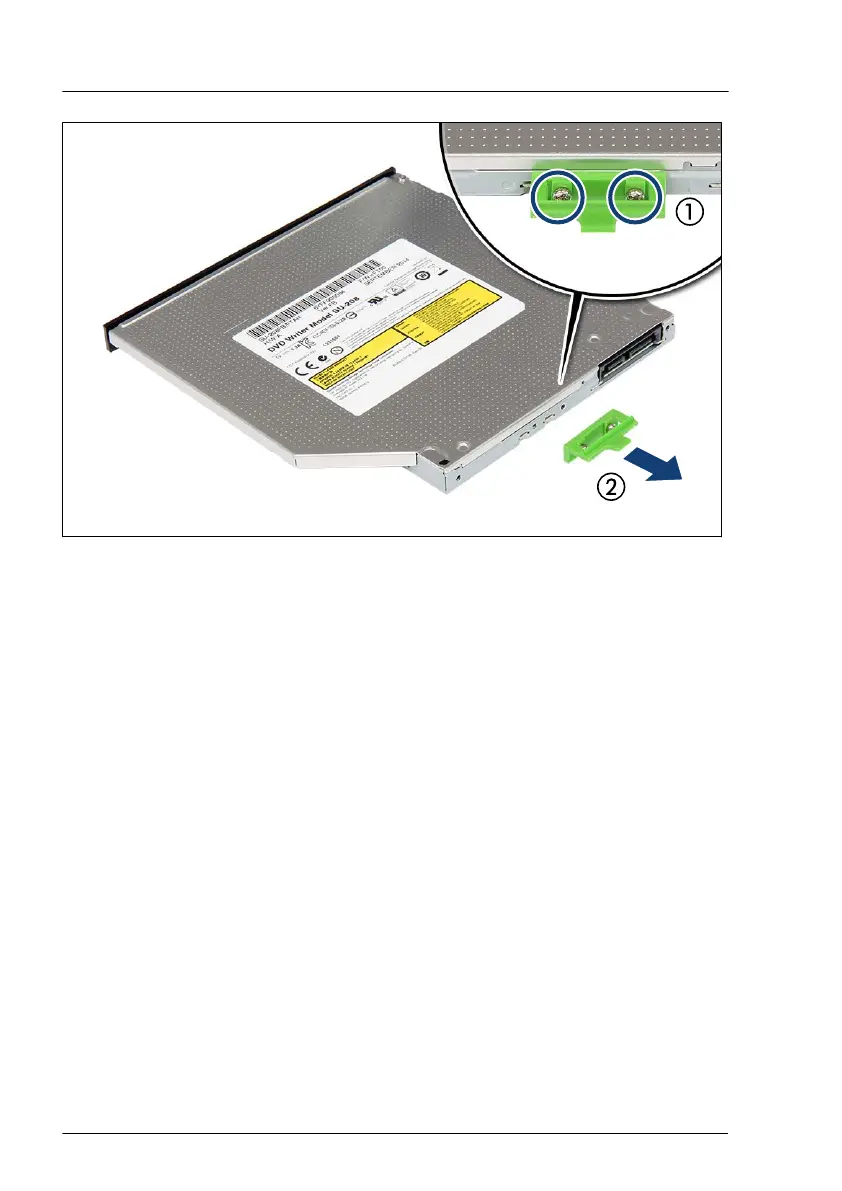

Figure 261: Removing the locking latch from the ultraslim ODD
▶
Remove the two screws (1).
▶
Remove the locking latch (2).
▶
If the removed ultraslim ODD is not to be replaced by a new drive:
▶
Fasten the locking latch to the ultraslim ODD with its two original screws
to the HDD cage (see Figure 256).
▶
Insert the ultraslim ODD dummy cover (see Figure 255).
Installing the 3.5-inch HDD extension box
▶
Install the 3.5-inch HDD extension box, see "Installing the 4x 3.5-inch HDD
extension box" on page
256
.
Concluding steps
▶
"Reassembling" on page 66.
▶
"Connecting the power cord" on page 79.
▶
"Switching on the server" on page 81.
