Removing the ultraslim ODD from the ultraslim ODD adapter

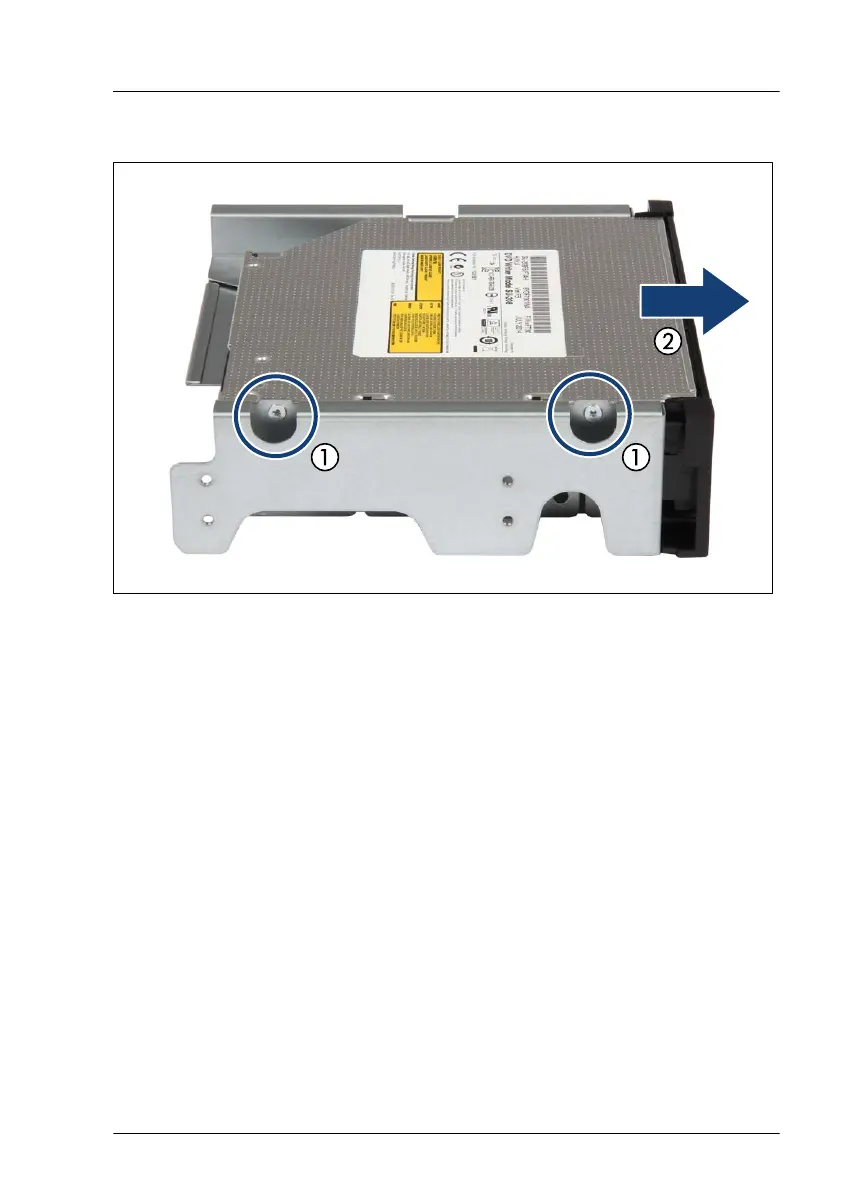

Figure 265: Removing the ultraslim ODD from the ultraslim ODD adapter
▶
Remove the two screws (1).
▶
Remove the ultraslim ODD (2).
▶
If the removed ultraslim ODD is not to be replaced by a new drive:
▶
Insert the ultraslim ODD dummy cover (see "Removing the ultraslim
ODD dummy cover").
Installing the ultraslim ODD adapter
▶
Install the ultraslim ODD adapter
, see "Installing an accessible drive" on
page 366.
Concluding steps
▶
"Reassembling" on page
66.
▶
"Connecting the power cord" on page 79.
▶
"Switching on the server" on page 81.
Accessible drives
TX1330 M4 Upgrade and Maintenance Manual 399
