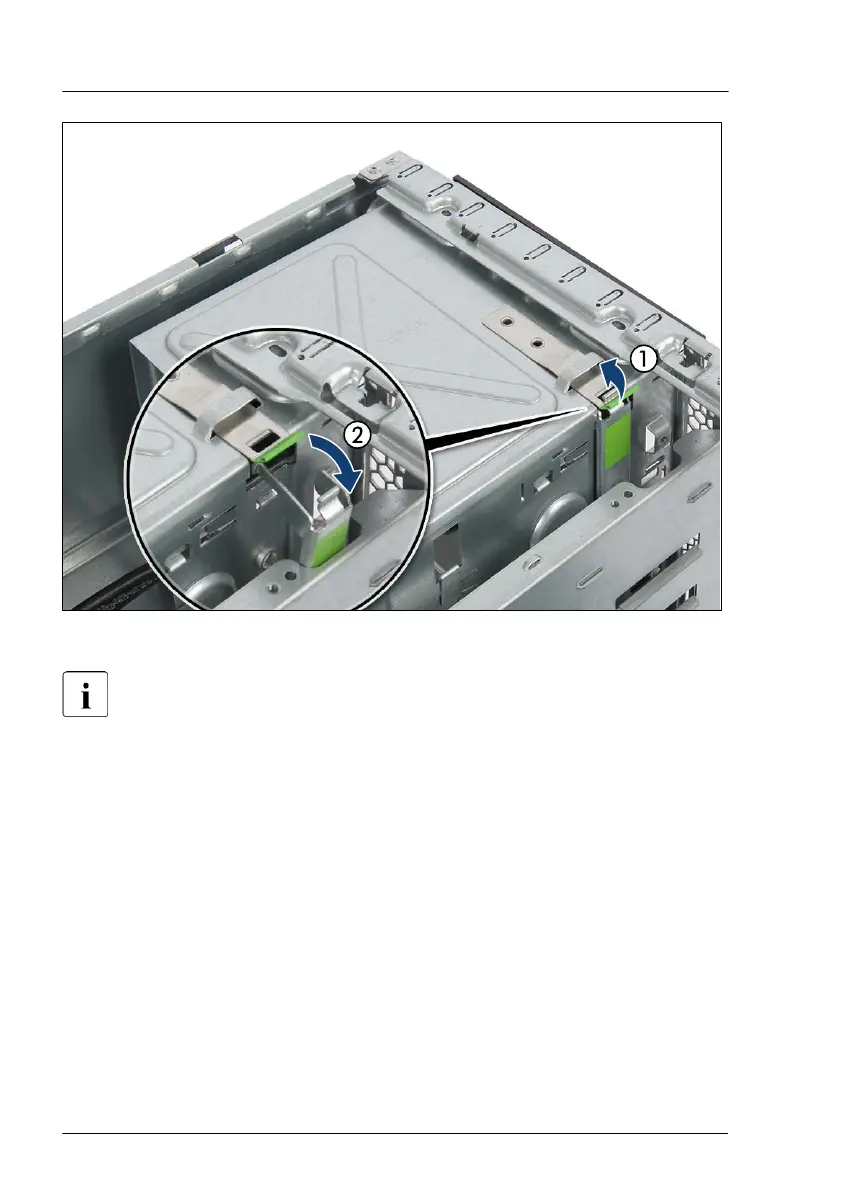

Figure 267: Opening the accessible drive locking bar
The front cover (floorstand model) / rack front cover (rack server) does
not need to be removed in order to replace the front panel module. In
the figures, the front cover / rack front cover has been removed for
illustration purposes only.
▶
Pull up the locking latch to disengage the accessible drive locking bar (1).
▶
Fold out the accessible drive locking bar (2).
Front panel
406 Upgrade and Maintenance Manual TX1330 M4
